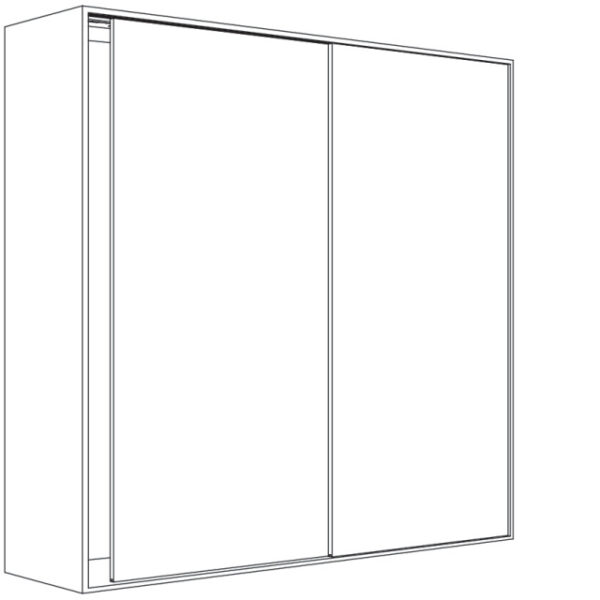

Hawa Clipo 36 H IS Sliding Door System

The HAWA CLIPO 36 H IS is a top running sliding system for two wooden doors weighing up to 79 lb (36 kg) each, for inslide/inlay applications. It doesn’t matter whether you are installing one, two or three wooden doors in your furniture, whether these doors run inside or in front of the cabinet, or whether you are planning a stylish kitchen cabinet, serving hatch or service counter:

The ideal Hawa Clipo version is available for all. Precisely coordinated to the weight of the door in versions for 15, 16, 26 or 36 kg. And with suitable soft closing performance for any weight class, which also increases the degree of sliding convenience, which is already high to begin with. Regarding comfort: You also benefit from this during installation. You can choose whether you glue, screw on, caulk, groove mount or surface mount the running tracks. The door leaf and the running gear are connected without tools using a clip-on system. And height adjustment.

Product-Highlights

Flexibility

The HAWA Clipo 36 H IS boasts a wide range of applications for sliding door cabinets in any dimension

Productivity

Easy installation with tool-less clip-on system and convenient height adjustment

Technical guidelines

                     Max. 36 kg (79 lbs.)

                      Max. 2200 mm (7′ 2 5/8”)

                      Max. 1000 mm (3′ 3 3/8”)

                      19–25 mm (3/4” to 31/32”)

Design / Integration

                     IS Inslide
