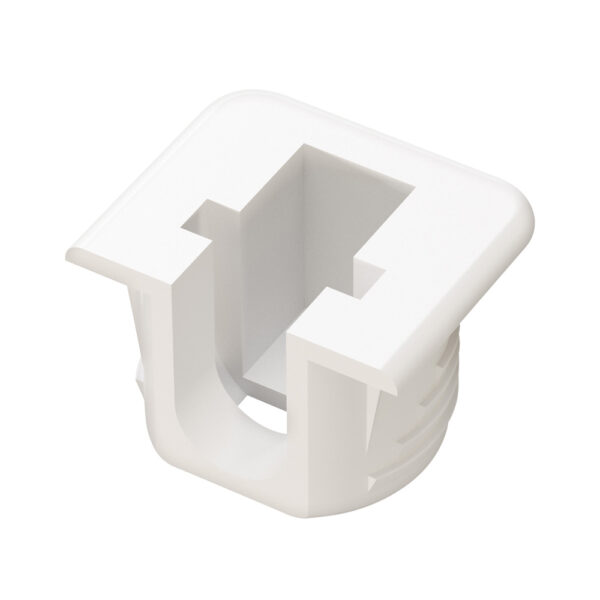

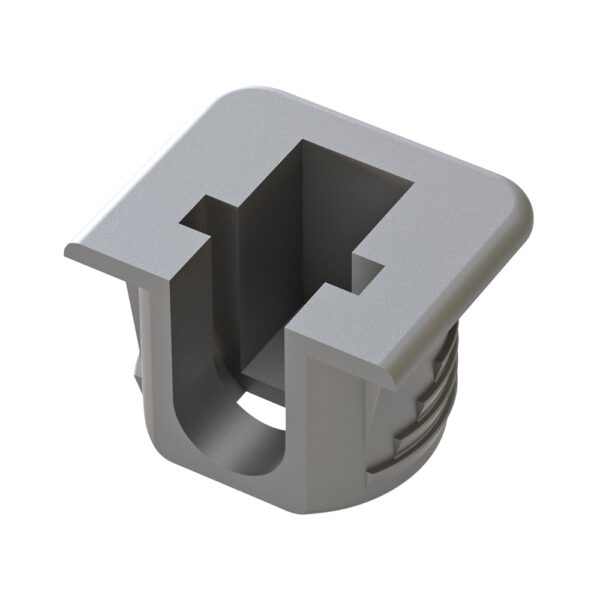

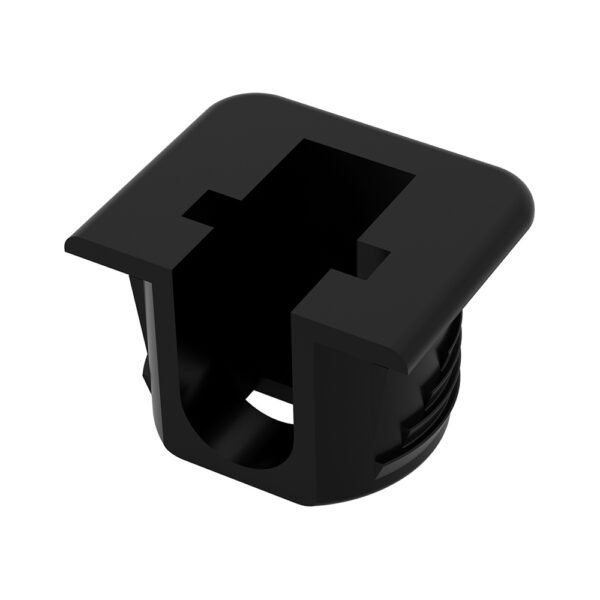

Shelf locking support “FLIPPER” with smooth pin
£0.09 ex. VAT
£0.11 incl. VAT
⚙️ Technical Information
- Description
- Additional information
Description
PRODUCT INFORMATION

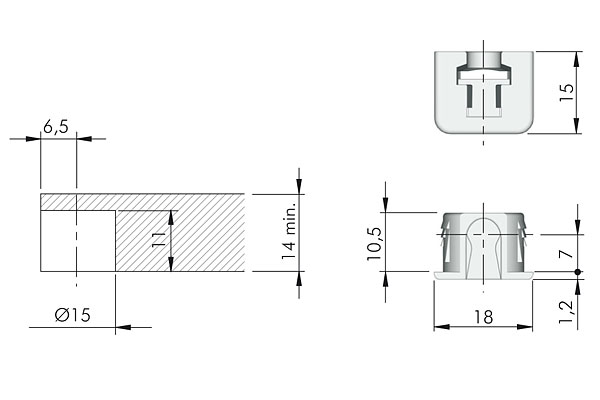

- For shelf 14 – 18 mm thick (panel or wood).

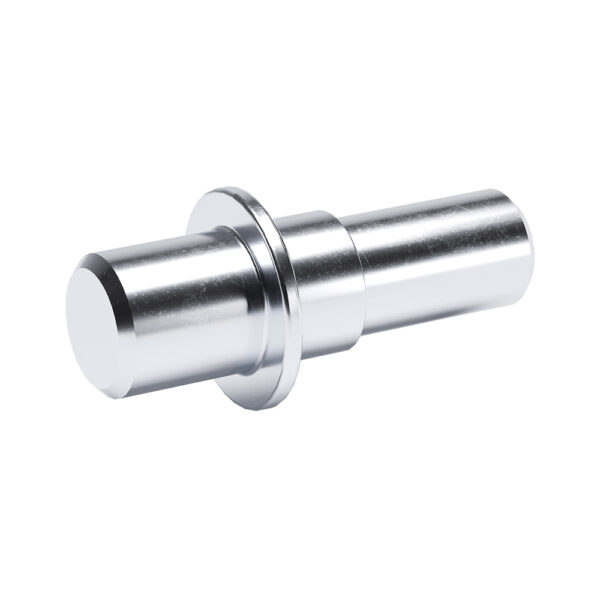

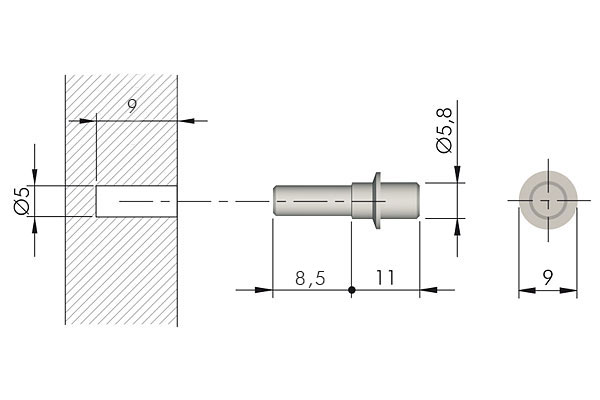

- The shelf has to be pushed downwards onto the side dowels, which can be placed or screwed into any position required.

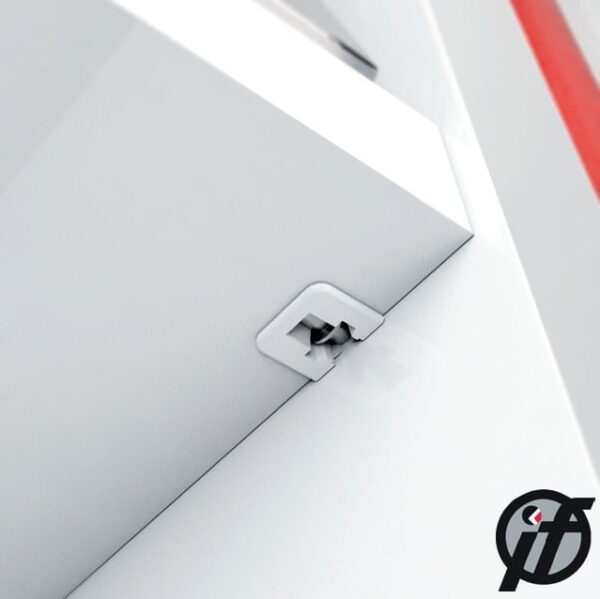

- The side dowels slot into the socket of the shelf supports and a click locks the shelf in position. To provide a structural fastening to the furniture screwed side dowels are required, so that the shelf flushes with the sides.
- In accordance with the European regulations UNI EN 14749/05.
- Recommended load capacity (Width x Length, mm – Max. shelves Weight) 300×600 – 32; 300×800 – 28; 450×600 – 30; 450×800 – 25.
- Shelf support with euro screw
TOOLS:
Additional information
| Finish | White, Black, Grey |
|---|
