SALICE Exedra 2 Star
£1,399.98–£1,480.98 ex. VAT
£1,679.98–£1,777.18 incl. VAT
- Description
- Additional information
Description
PRODUCT INFORMATION:
EXEDRA 2 STAR

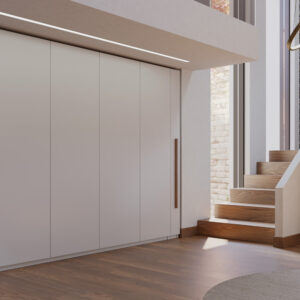

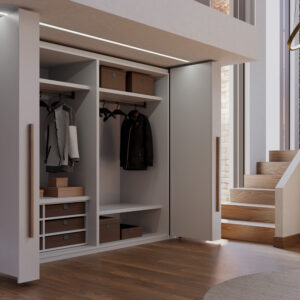

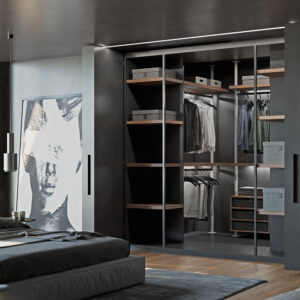

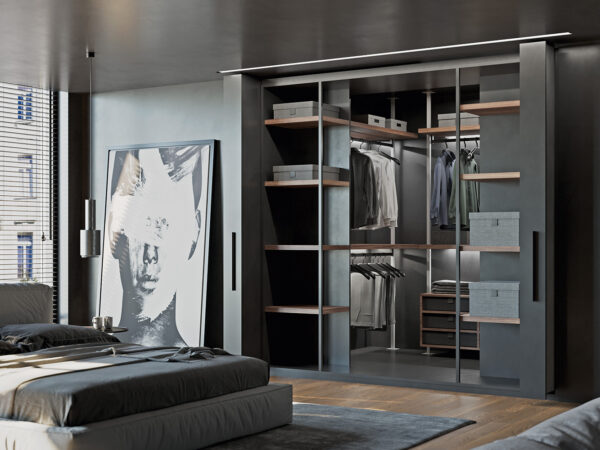

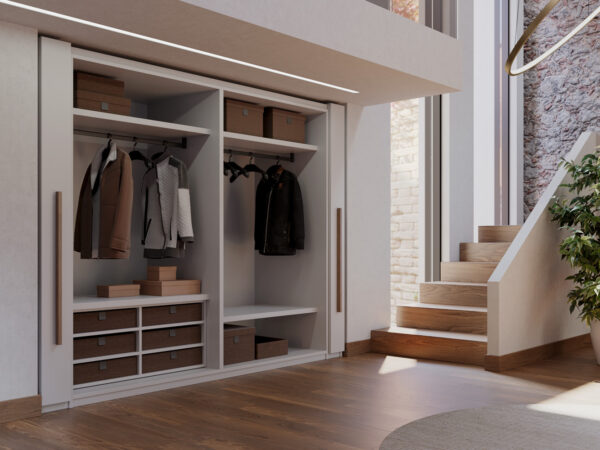

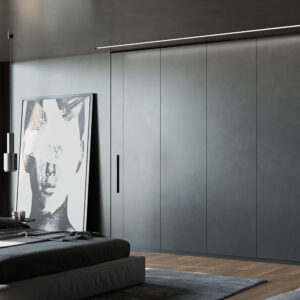

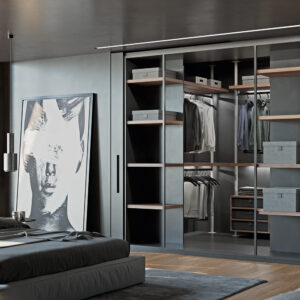

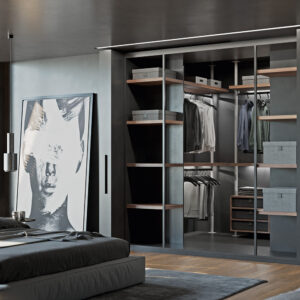

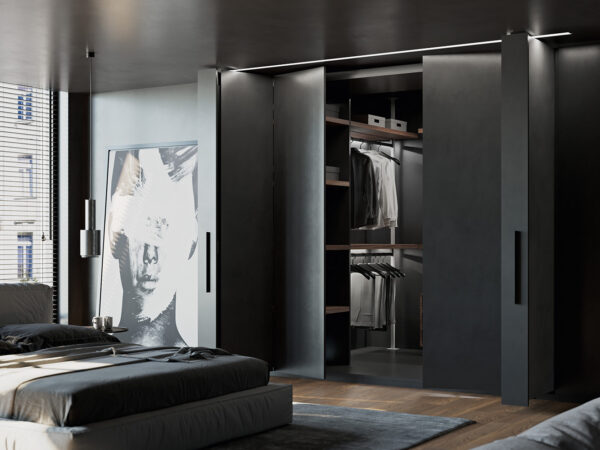

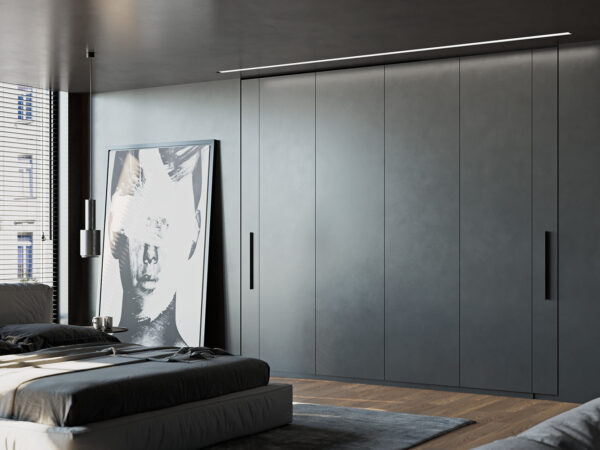

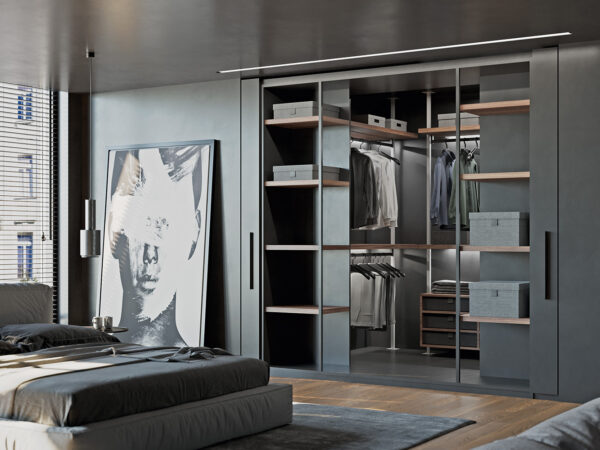

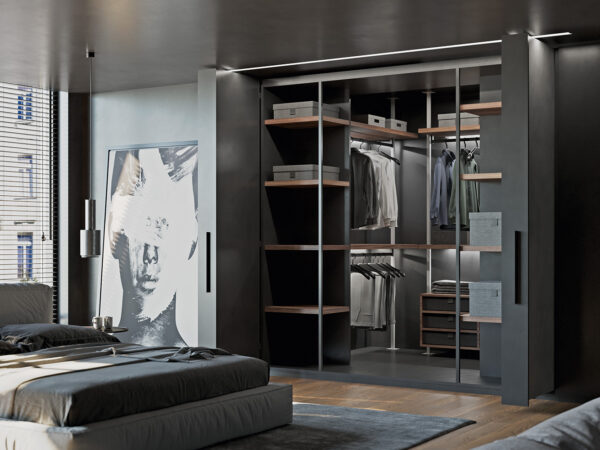

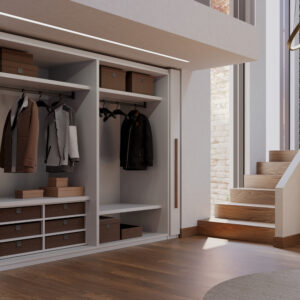

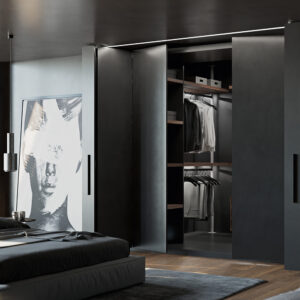

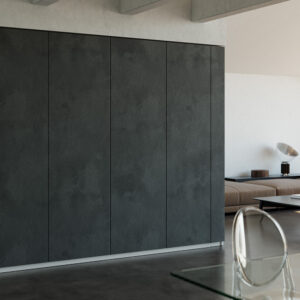

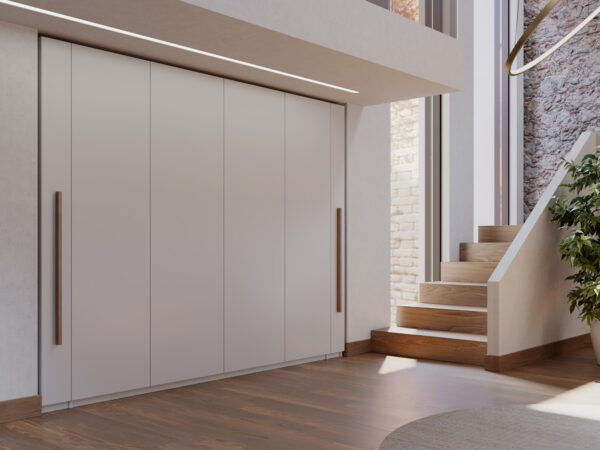

The Evolution of the Exedra System, which enables the simultaneous movement of two linked doors. Exedra 2 Star is the version where the compartment that houses mechanism is always hidden by the cover panel fixed to the front of the system.

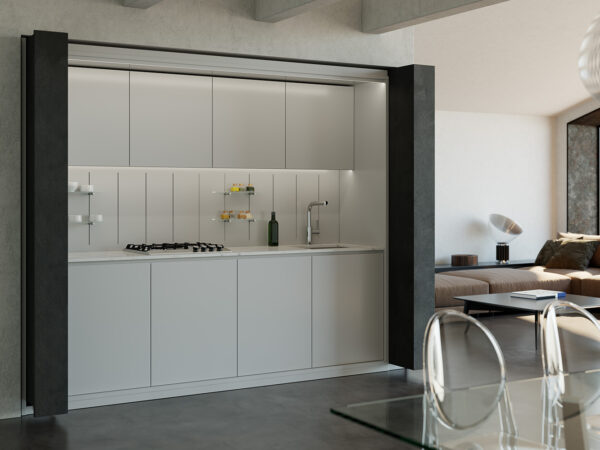

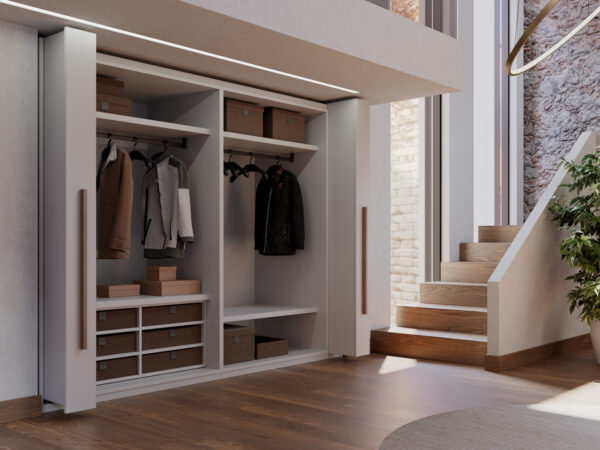

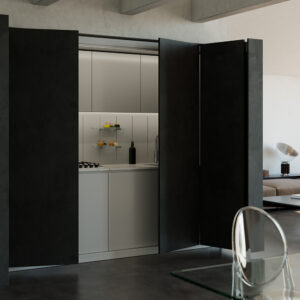

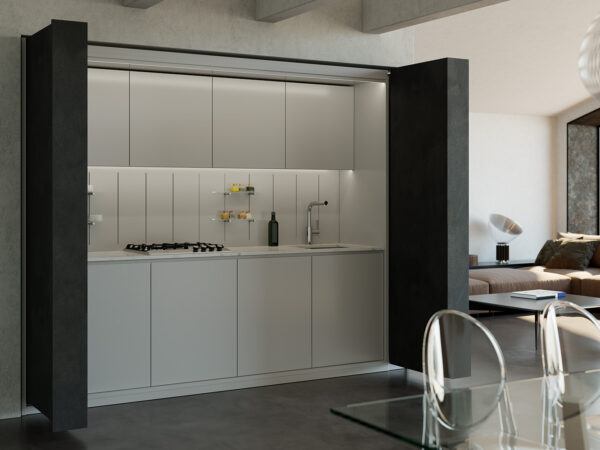

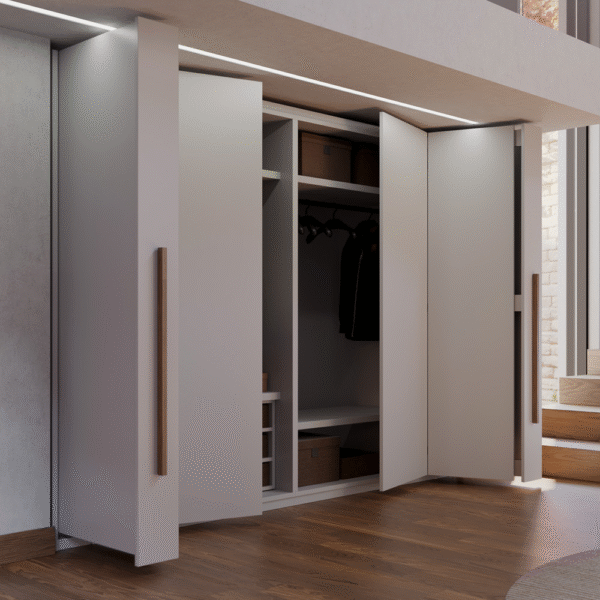

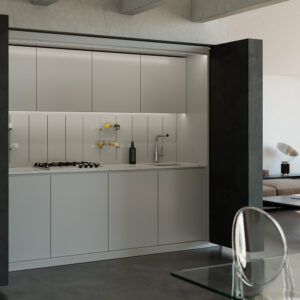

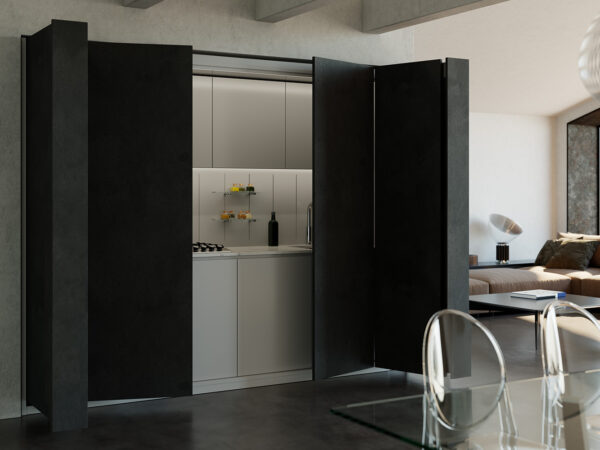

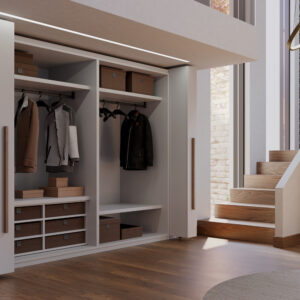

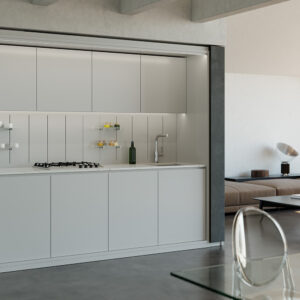

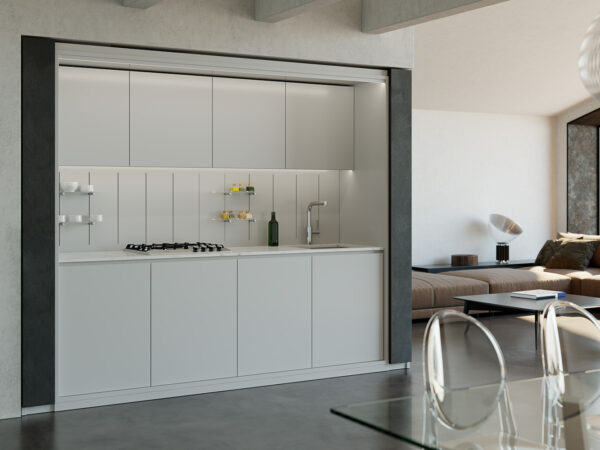

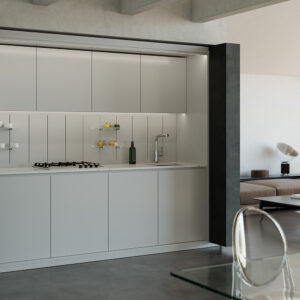

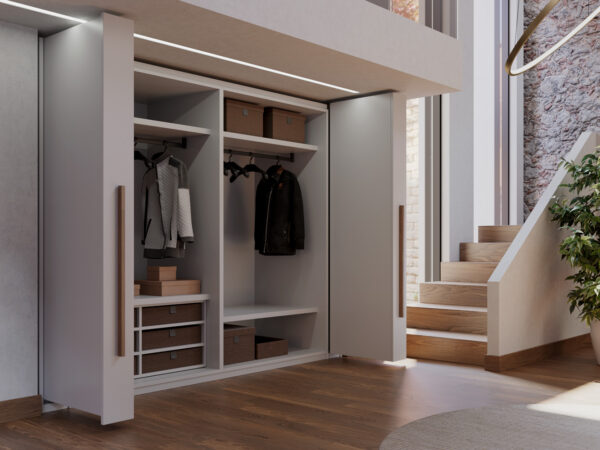

The system can be used in a host of applications to enable a significant functional optimisation of space, from walk-in wardrobes to larder units for kitchens, home office solutions and in storage applications.
The system does not necessarily have to be placed on the floor, therefore it is possible to create systems raised from the ground or placed on a cupboard or a chest of drawers.
DOUBLE pocket door system with cam-assisted door extraction and cushioned door insertion.
Available in three opening mechanisms:
– traditional

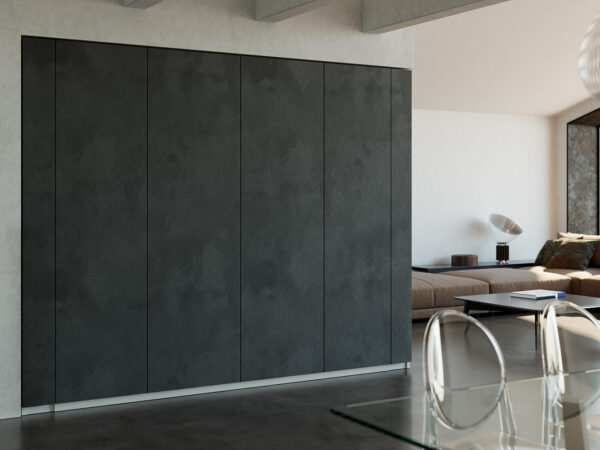

– handle-less Push
– fully motorized
Vertical adjustment: ± 5 mm
Horizontal adjustment: ± 3.5 mm
Upper front adjustment: ± 3 mm
Lower front adjustment: ± 2 mm
- Maximum weight for single door: 25 Kg
- Doors thickness: min 18 mm – max 25 mm
- Width of single door – Exedra2 Star: min 350 mm – max 757 mm
- Doors height: min 1800 mm – max 3000 mm The right mechanism and the left mechanism are independent of each other, therefore it is possible to order them individually.
If they are installed on the same cabinet, they must be configured as a pair.
With three opening mechanisms – traditional, handle-less Push, or fully motorized – Exedra2 provides an ideal solution for any design requirement.
Eliminating the need for cables, tie rods, or springs, the Exedra2 technology uses the force of gravity, along with the magnetic dampers that control the doors, offering a fluid, silent and long-lasting movement, tested up to 50.000 cycles.
Additional information
| Weight KG, 'Per Door' | 25KG |
|---|---|
| Version | Pull (Soft Close), Push to Open |
| Door Height MM, | 1,800 – 3,000mm |
| Side | Left, Right |
