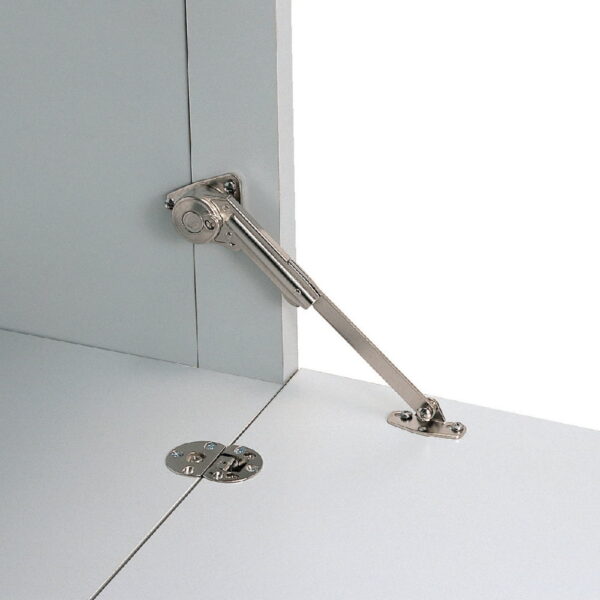

ADJUSTABLE SOFT-DOWN STAY NSDX-10

Description

• For downward-opening flap doors.
• Built-in damper causes flap to open gently near fully open radius.
• Non-handed.
• SDS-C100 has a built-in catch to hold the door in a closed position.
• SDS-100 does not have a catch and needs to have one installed separately.

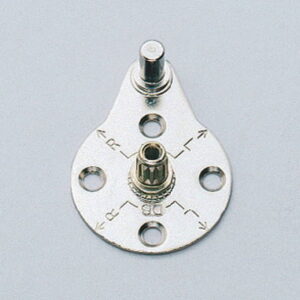

Required mounting plates (Sold separately)

• Mounting plate NSDX-SZ
• Mounting plate NSDX-CZ
• Mounting plate NSDX-AZ for 20 mm aluminium frame
• Mounting plate NSDX-GZ for glass door
• SDS-50G for glass door

Torque

• With 1 stay
  Torque = 1.96 – 6.86 N·m (20 – 70 kgf·cm)
• With 2 stays, the torque will be doubled.
