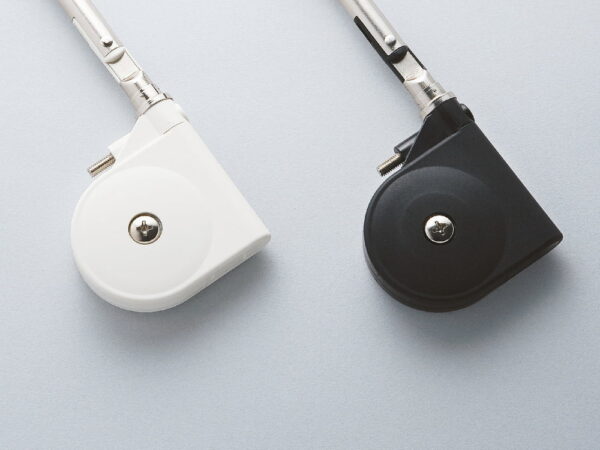

SHORT ARM SOFT-DOWN STAY SDS-100-TV, SDS-C100-TV

Description

• For downward-opening flap doors. Works well with short flap doors.
• Built-in damper causes flap to open gently near fully open radius.
• Non-handed.
• SDS-C100-TV has a built-in catch to hold the door in a closed position.
• SDS-100-TV does not have a catch and needs to have one installed separately.
• Material : ABS/Steel

Sold Separately

• Face plate for glass doors SDS-50G
• Material: Zinc Alloy (ZDC)/ABS

Parts included:

• Mounting plate SDS-A
• Countersunk head tapping screw 3.5 × 14

Torque

• With 1 stay
  Torque = 0.49 – 1.18 N·m (5 – 12 kgf·cm) : TV type
  1.62 – 3.68 N·m (16.5 – 37.6 kgf·cm) : TVZ type
