Cinetto PS23 Folding doors system

Cinetto PS23 Bi-Folding Door Hardware System

The Cinetto PS23 Bi-Folding Door Hardware System provides a smooth and reliable solution for folding door applications. Designed for wooden doors and aluminium frame doors, the system allows multiple door panels to fold neatly while maximising access to the opening.

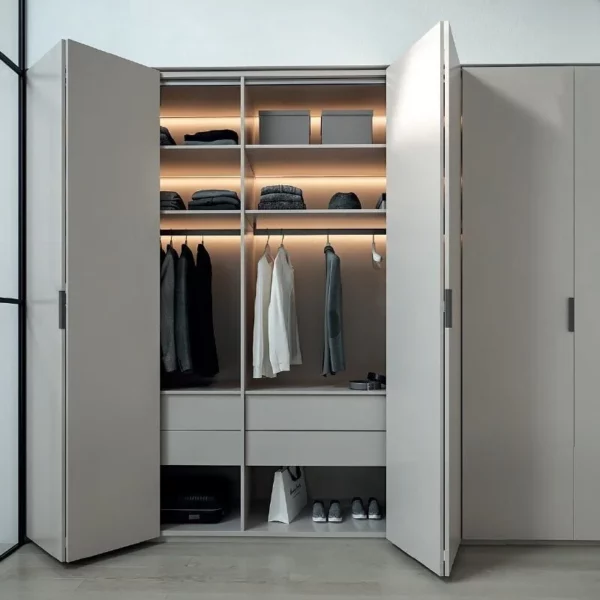

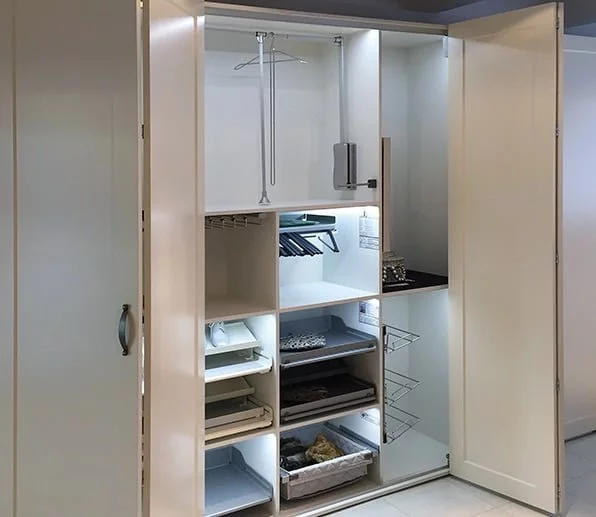

As a result, the PS23 system is ideal for wardrobes, storage areas, room dividers and furniture applications where space efficiency is important. Furthermore, the system operates without a bottom track, helping to create a clean and unobstructed floor area.

Smooth and Quiet Door Operation

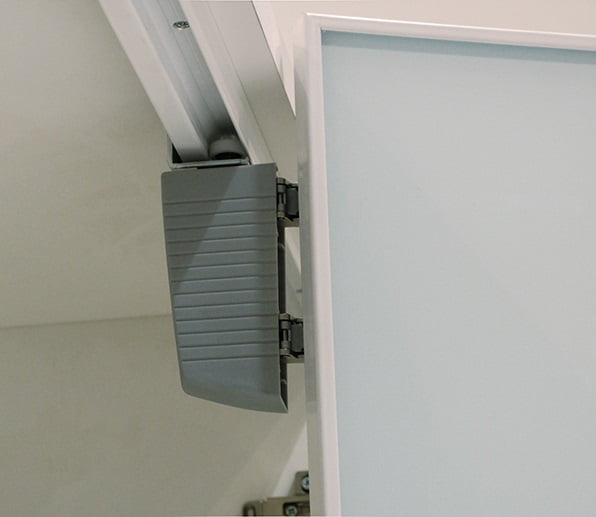

The PS23 system features precision ball bearing rollers that deliver smooth and consistent movement. In addition, the high-quality running gear helps reduce friction, ensuring reliable everyday performance.

Because the system uses top-hung operation, users benefit from effortless opening and closing while maintaining a clean and modern appearance.

Suitable for Wooden and Aluminium Frame Doors

The Cinetto PS23 accommodates both timber doors and aluminium frame doors with a minimum frame width of 50mm. Moreover, the system supports door panel pairs with load capacities between 25kg and 50kg.

Unlike many folding door systems, the PS23 does not impose strict limitations on door height, width or thickness. Consequently, it offers greater design flexibility for bespoke furniture and interior projects.

Enhanced Stability When Required

The system operates without a bottom rail as standard. However, for tall and narrow door configurations, an optional bottom guide can improve stability and performance.

Therefore, installers can adapt the system to suit a wide range of residential and commercial applications.

Key Features

• Bi-folding door hardware system
• No bottom track required
• Smooth top-hung operation
• Precision ball bearing rollers
• Suitable for wooden doors
• Suitable for aluminium frame doors
• Compatible with frame widths from 50mm
• Load capacity from 25kg to 50kg per pair of panels
• Flexible door size options
• Additional accessories available
• Ideal for wardrobes, storage units and interior furniture

Specifications

• Product: Cinetto PS23
• Door Type: Bi-folding doors
• Operation: Top-hung
• Bottom Rail: Not required
• Roller Type: Ball bearing
• Door Material: Wood or aluminium frame
• Minimum Aluminium Frame Width: 50mm
• Load Capacity: 25–50kg per pair of panels

Included in the System

• PS23 folding door hardware components
• Running gear and rollers
• Installation components

Please note that door panels and optional accessories are supplied separately.
