Salice Folder 90

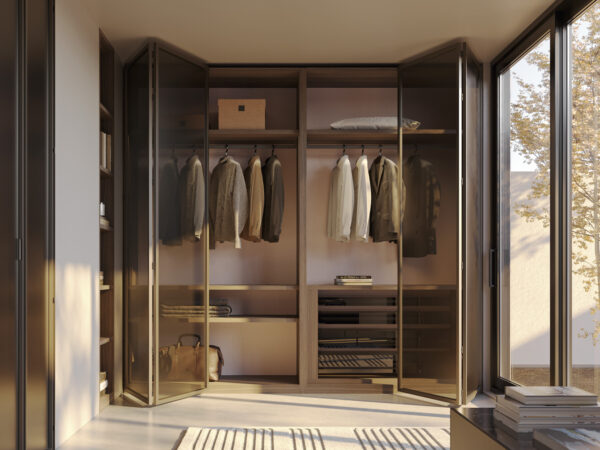

Salice Folder 90 Folding Door System

The Salice Folder 90 is a high-quality folding door system designed for wardrobes, storage cabinets and furniture applications. Featuring smooth concertina-style operation, integrated damping technology and a compact opening angle of up to 94°, it provides excellent accessibility while maximising usable space.

Suitable for both wooden and aluminium-framed doors, the system delivers reliable performance and a refined user experience in residential and commercial furniture projects.

Smooth and Controlled Door Movement

The Salice Folder 90 combines silicon oil dampers with magnetic damping technology to create smooth and controlled door movement. As a result, the doors open and close gently, reducing noise and preventing impact damage.

Furthermore, the closing speed can be adjusted after installation, allowing precise control to suit different door sizes and furniture designs.

Compact 94° Opening Design

Designed for furniture where space efficiency is important, the Folder 90 provides an opening angle of up to 94°. This allows convenient access to cabinet interiors while maintaining a compact folding movement.

Consequently, the system is ideal for wardrobes, tall cabinets, wall units and storage furniture where a full 180° opening is not required.

Salice Folder 90 Features

• Folding concertina door system
• Maximum opening angle: 94°
• Maximum door weight: 40 kg
• Silicon oil damping technology
• Magnetic soft-close damper
• Smooth and quiet operation
• Adjustable closing speed
• Three-way door adjustment

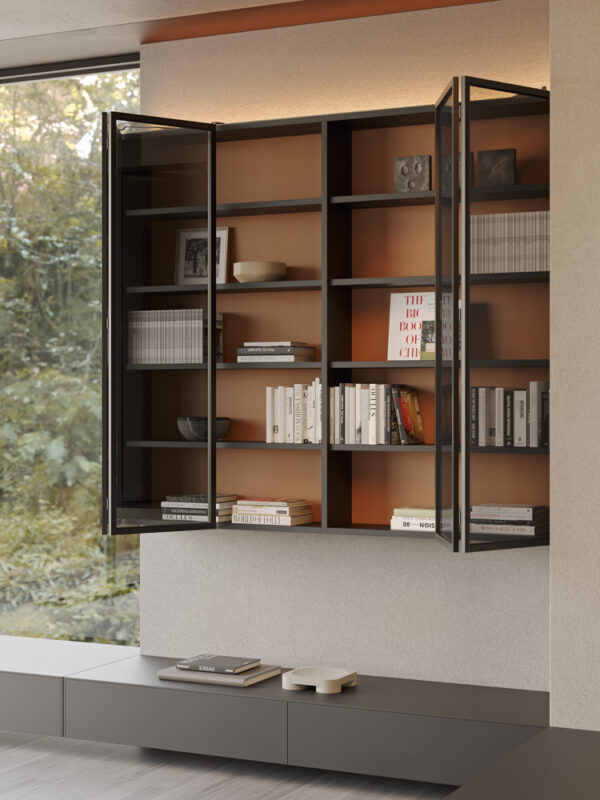

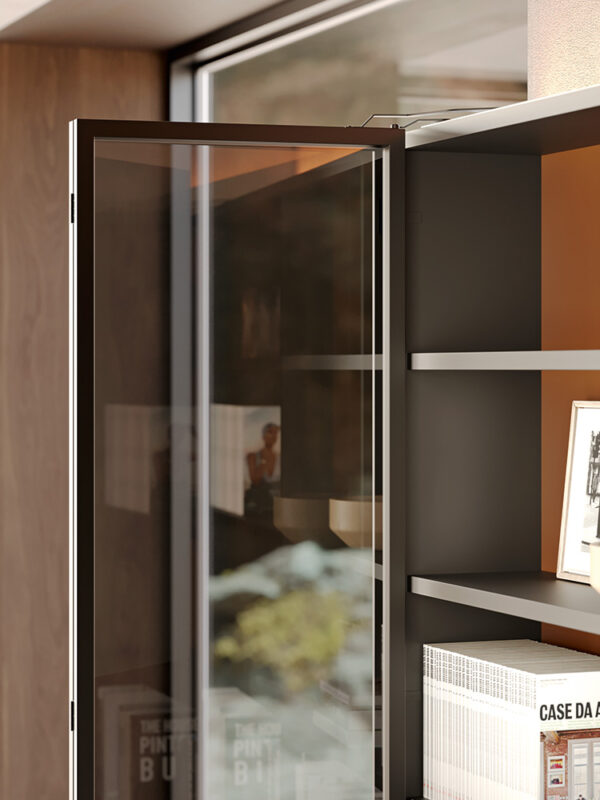

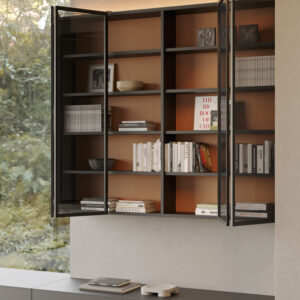

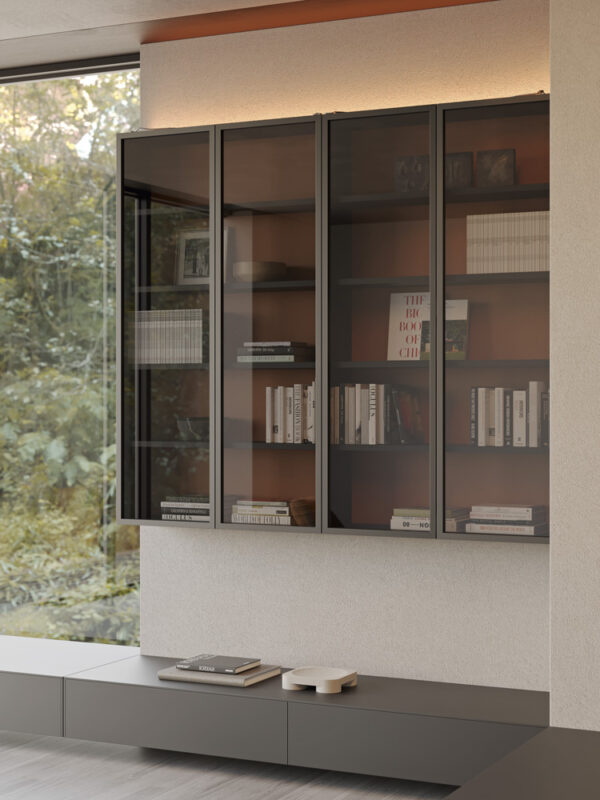

• Suitable for wooden and aluminium-framed doors
• Top or bottom track installation

Flexible Installation Options

The track can be installed beneath the cabinet base or at the top of the cabinet, providing flexibility across a wide range of furniture applications.

Suitable for:

• Wardrobes
• Column units

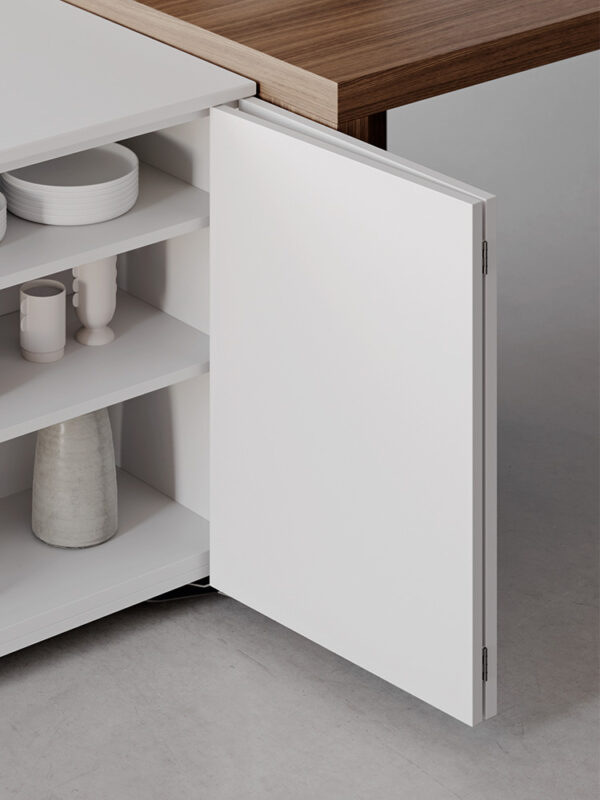

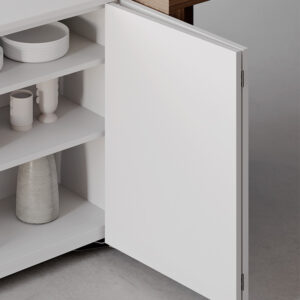

• Base cabinets

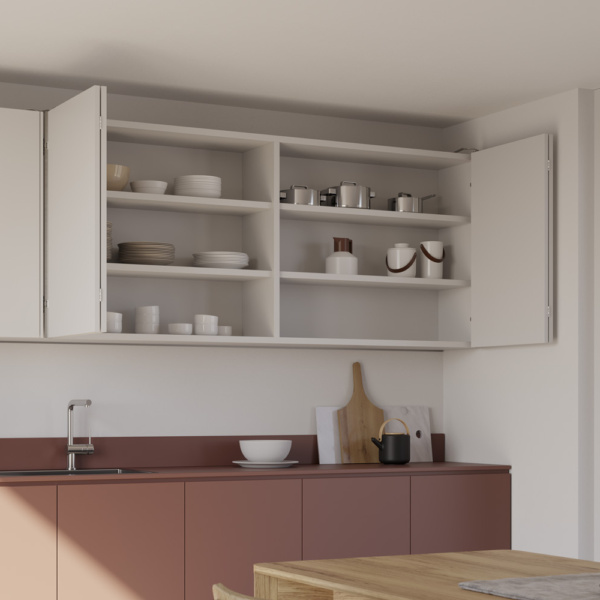

• Wall units
• Storage furniture

Compatible Hinge Options

The Salice Folder 90 is compatible with:

SILENTIA+ 94° Hinges

• Cabinet depth: Minimum 350 mm
• Door thickness: 19–25 mm
• Door width: 350–600 mm
• Side thickness: Minimum 16 mm

CONECTA 94° Hinges

• Cabinet depth: Minimum 330 mm
• Door thickness: 25 mm
• Wooden door width: 350–600 mm
• Aluminium-framed door width: 350–600 mm
• Side thickness (DQG3B): Minimum 19 mm
• Side thickness (DQG5B): Minimum 16 mm

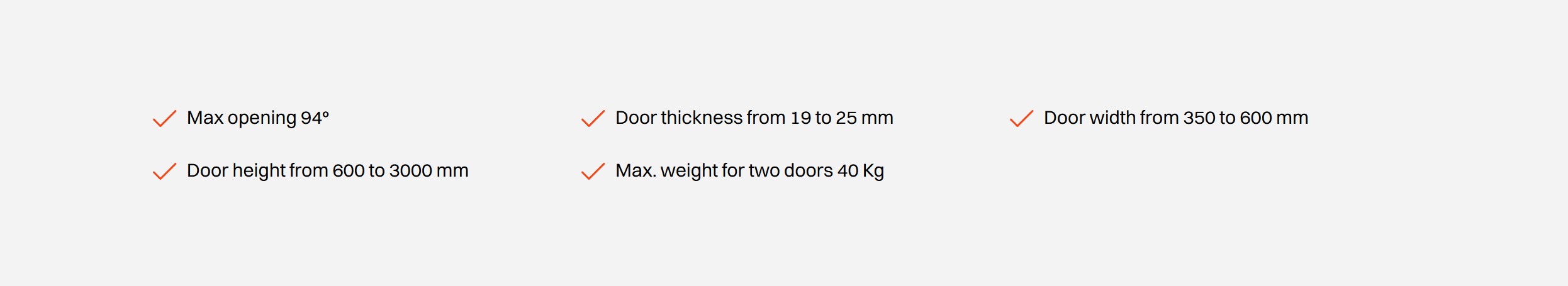

Technical Specifications

• Maximum Door Weight: 40 kg
• Door Height: 600–3000 mm
• Opening Angle: 94°
• Door Width: 350–600 mm
• Installation: Top or bottom mounted track
• Adjustment: Three-way adjustment
• Soft Close: Silicon oil and magnetic damping system

Applications

The Salice Folder is ideal for:

• Bedroom wardrobes

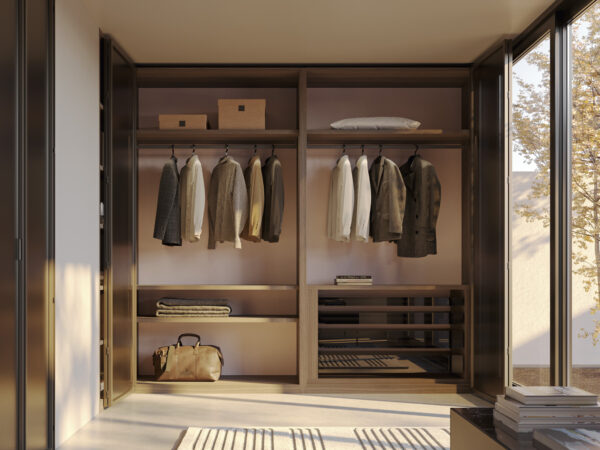

• Walk-in wardrobes
• Storage cabinets
• Utility room furniture
• Office storage units
• Contemporary fitted furniture

Why Choose the Salice Folder 90?

The Salice Folder 90 offers a practical combination of compact folding movement, soft-close technology and installation flexibility. In addition, its adjustable damping system and wide compatibility with Salice hinge solutions make it a reliable choice for modern furniture manufacturing and bespoke joinery projects.

Whether installed in wardrobes, tall cabinets or storage furniture, the Salice Folder 90 delivers smooth operation, premium performance and long-term durability.
