Hawa Frontslide 100 MATIC
£12.50–£899.60 ex. VAT
£15.00–£1,079.52 incl. VAT
⚙️ Installation instructions for Frontslide 100 MATIC
View entire Frontslide range HERE
- Description
- Additional information
Description

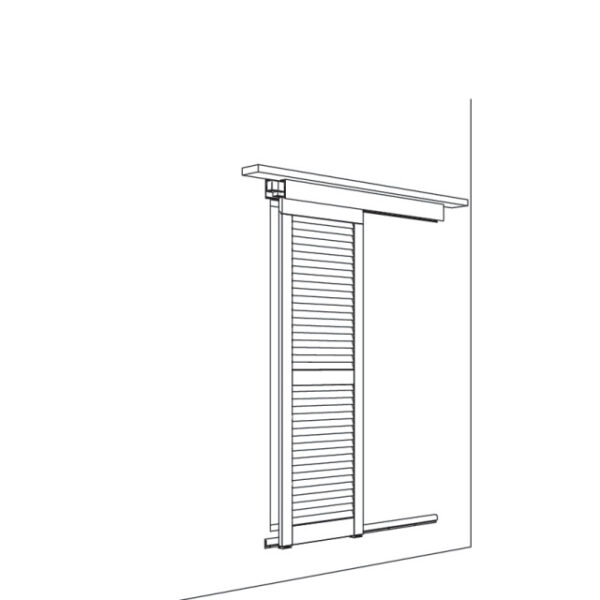

Hawa Frontslide 100 MATIC
The Hawa Frontslide 100 MATIC is an automated sliding shutter system designed for wooden and metal shutters weighing up to 100 kg. Featuring an integrated SMI interface for building automation systems, it combines intelligent control, smooth movement and reliable long-term performance for modern architectural applications.
Suitable for both ceiling-mounted and architrave-mounted installations, the system offers a practical solution for controlling daylight, privacy and façade design while maintaining a clean and contemporary appearance.
Automated Sliding Shutter Technology
The Hawa Frontslide 100 MATIC provides fully automated operation, allowing shutters to move smoothly and efficiently at the touch of a button or through a connected building management system.
Furthermore, the integrated SMI interface enables seamless communication with smart building controls. As a result, users can optimise daylight management, energy efficiency and comfort throughout the building.
Designed for Reliability
Engineered for demanding environments, the system has successfully completed 100,000 operating cycles. In addition, the robust hardware offers excellent resistance to wind and corrosion, making it suitable for both residential and commercial projects.
Therefore, architects and designers can specify the system with confidence for long-term performance and durability.
Key Features
- Automated sliding shutter system
- Integrated SMI building control interface
- Suitable for wooden and metal shutters
- Maximum shutter weight of 100 kg
- Smooth and reliable operation
- Tested to 100,000 cycles
- High resistance to wind and corrosion
- Ceiling or architrave mounting
- Modern flush-fitting design options
- Ideal for smart building projects
Design and Integration Options
The system supports several installation and design configurations, including:
- Half-opening shutter arrangements
- IS Inslide flush-fitting design
- MS Mixslide flush-fitting design
These options provide greater flexibility for architects seeking clean lines and seamless façade integration.
Technical Specifications
- Maximum Shutter Weight: 100 kg
- Maximum Shutter Height: 3200 mm
- Shutter Width: 650–3750 mm
- Maximum Shutter Area: 6.24 m²
- Shutter Thickness: 28–50 mm
- Mounting Options: Ceiling mounted or architrave mounted
- Material Compatibility: Wooden and metal shutters
Applications
The Hawa Frontslide 100 MATIC is suitable for:
- Smart homes
- Residential developments
- Commercial buildings
- Architectural façade systems
- Sun shading applications
- Automated privacy screens
- Hospitality projects
- Contemporary building design
By combining automation, durability and architectural flexibility, the Hawa Frontslide 100 MATIC delivers a high-performance solution for modern sliding shutter applications.
Additional information
| PART | Hawa Frontslide 100 Matic, for 1 sliding shutter, Hawa Motronic 100 SMI for Hawa Frontslide 100 Matic, incl. control unit, toothed belt lock and pulley wheel, Toothed belt, 2.7 m, fibre glass reinforced, black, Toothed belt, 5 m, fibre glass reinforced, black, Toothed belt, 8 m, fibre glass reinforced, black, Toothed belt, 10 m, fibre glass reinforced, black, Toothed belt, 15 m, fibre glass reinforced, black, Toothed belt, 50 m, fibre glass reinforced, black, Running track, aluminum, anodized, pre-drilled (3,500mm), Running track, aluminum, anodized, pre-drilled (6,000mm), Connecting bolts, 6-piece set, Guide track, aluminum, anodized, pre-drilled (3,500mm), Guide track, aluminum, anodized, pre-drilled (6,000mm), Cover panel, aluminum, anodized (3,500mm), Cover panel, aluminum, anodized (6,000mm), Parts for fitting running track |
|---|
