Hawa Frontslide 60 B
£12.50–£215.78 ex. VAT
£15.00–£258.94 incl. VAT
- Description
- Additional information
Description

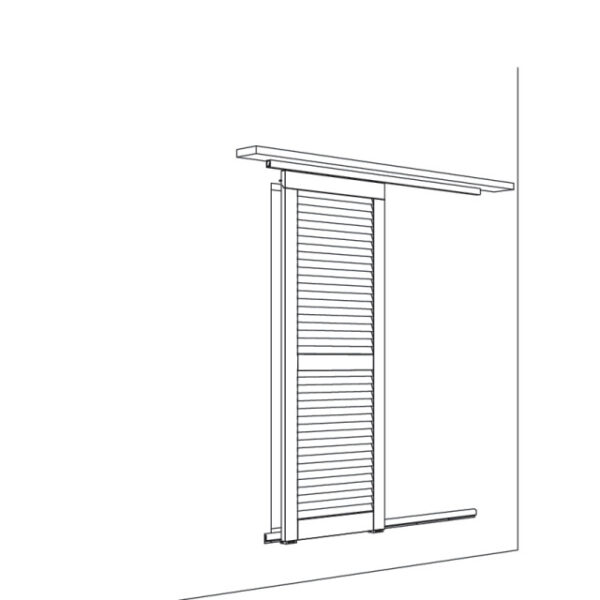

Hawa Frontslide 60 B
The Hawa Frontslide 60 B is a top-running sliding shutter system designed for wooden and metal shutters weighing up to 60 kg. With its minimal installation height and clean architectural appearance, it offers an elegant solution for modern façade designs while ensuring smooth and reliable operation.
Suitable for both ceiling and architrave mounting, the system integrates seamlessly into residential and commercial projects where aesthetics and functionality are equally important.
Modern Sliding Shutter Design
The Hawa Frontslide 60 B creates a minimal gap between the shutter and running track, resulting in a refined and contemporary appearance. As a result, architects and designers can achieve a cleaner façade with improved visual integration.
Furthermore, the flush-fitting design options allow the shutters to blend naturally with the building envelope, enhancing both style and practicality.
Smooth and Reliable Operation
Designed for everyday use, the system delivers smooth sliding performance for wooden and metal shutters. In addition, the robust running gear supports shutter panels up to 60 kg while maintaining consistent operation over time.
Therefore, it is an excellent choice for external shading systems, privacy screens and architectural façade applications.
Hawa Frontslide 60 B Features
- Top-running sliding shutter system
- Suitable for wooden and metal shutters
- Maximum shutter weight: 60 kg
- Minimal installation height
- Ceiling or architrave mounting
- Smooth and reliable operation
- Minimal gap between shutter and track
- Modern flush-fitting appearance
- Ideal for contemporary façade designs
Design and Integration Options
The Hawa Frontslide supports several design configurations, including:
- Half-opening shutter arrangements
- IS Inslide flush-fitting systems
- MS Mixslide flush-fitting systems
These options provide greater flexibility when designing modern architectural façades and external shading solutions.
Technical Specifications
- Maximum Shutter Weight: 60 kg
- Maximum Shutter Height: 3200 mm
- Shutter Width: 400–3750 mm
- Maximum Shutter Area: 9.6 m²
- Shutter Thickness: 28–40 mm
- Mounting: Ceiling or architrave mounted
- Suitable for wooden and metal shutters
Applications
The Hawa Frontslide is ideal for:
- Residential façades
- Commercial buildings
- External shading systems
- Sliding privacy screens
- Modern architectural projects
- Hospitality developments
- Contemporary exterior design
By combining sleek aesthetics, flexible installation and dependable performance, the Hawa Frontslide 60 B provides an effective solution for high-quality sliding shutter applications.
Additional information
| PART | Hawa Frontslide 60 B, for 1 sliding shutter, Lower running track, aluminum, anodized, pre-drilled (2,500mm), Lower running track, aluminum, anodized, pre-drilled (6,000mm), Connecting bolts, 6-piece set, Guide track, aluminum, anodized, pre-drilled (2,500mm), Guide track, aluminum, anodized, pre-drilled (6,000mm), Floor guide unit, short, for guide track, Floor guide unit, long, for guide track, Guide slider, for screw fixing |
|---|
