GS-GH50 GLASS DOOR HINGE

Glass Door Hinge – GS-GH50

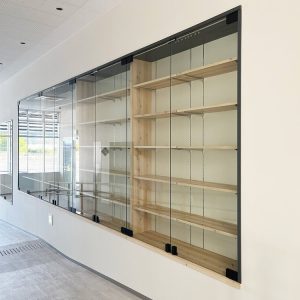

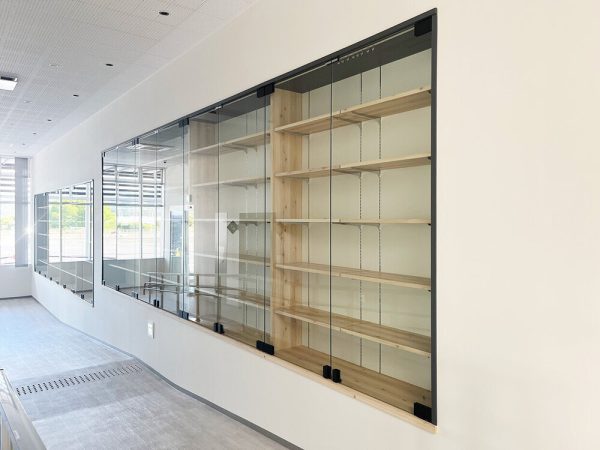

The Glass Door Hinge GS-GH50 is designed for large inset glass showcases. It provides a secure and practical hinge solution for glass doors fitted inside a showcase frame.

The GS-GH50 also makes installation easier. You can temporarily hold the door in the frame before fixing the screws, which helps with positioning and fitting.

Glass Door Hinge for Inset Doors

The GS-GH50 is designed specifically for inset glass doors, making it suitable for large display cabinets and glass showcases. Its design provides a neat finish while allowing useful adjustment after installation.

For a coordinated look, you can use the GS-GH50 with the GS-GL50 glass door lock. Using the matching hinge and lock creates a consistent appearance across the showcase.

Easy Glass Door Installation

The GS-GH50 helps simplify the installation process. The door can remain temporarily held within the frame before you fix the screws. As a result, installers can position the door more easily before securing the hinge.

Furthermore, the hinge provides useful adjustment after installation. This allows you to fine-tune the door position and achieve a more accurate fit.

Adjustable Glass Door Hinge

After installation, you can adjust the door position by ±3 mm from right to left using the horizontal adjustment screw. This allows installers to correct the door position and create an even finish.

The GS-GH50 also allows adjustment of the gap below the door. You can adjust the bottom gap from 7 mm to 12 mm using the height adjustment ring.

These adjustment features make the hinge a practical choice for large inset glass showcases where accurate door alignment is important.

GS-GH50 Features

• Designed for large inset glass showcases
• Suitable for inset glass doors
• Allows temporary door positioning before fixing screws
• Horizontal adjustment of ±3 mm after installation
• Adjustable bottom door gap from 7 mm to 12 mm
• Horizontal adjustment screw included in the design
• Height adjustment ring for precise positioning
• Recommended for use with the GS-GL50 lock
• Suitable for display cabinets and glass showcases
• Model: GS-GH50

Recommended Glass Door Lock

For a coordinated installation, the GS-GH50 Glass Door Hinge is recommended for use with the GS-GL50 lock. The matching components help create a consistent appearance across large inset glass showcases.

Overall, the Glass Door Hinge GS-GH50 provides easy installation and useful post-installation adjustment. Therefore, it is a practical solution for large inset glass showcase doors where accurate positioning and a clean finish are important.
