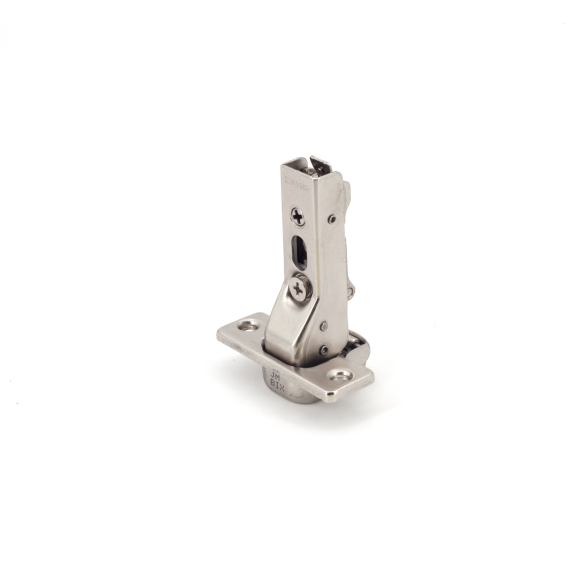

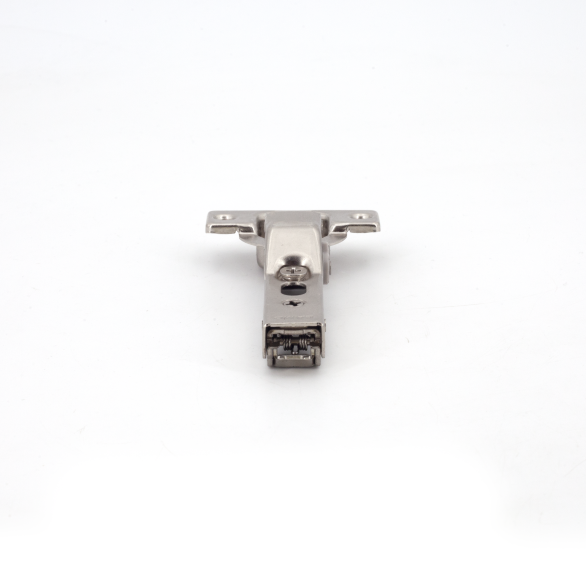

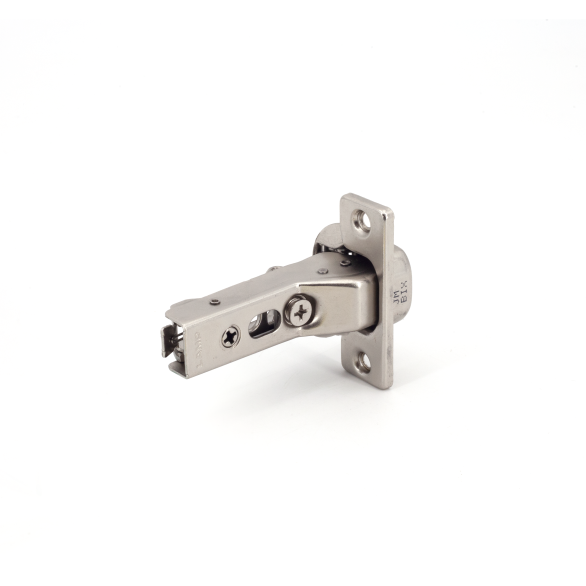

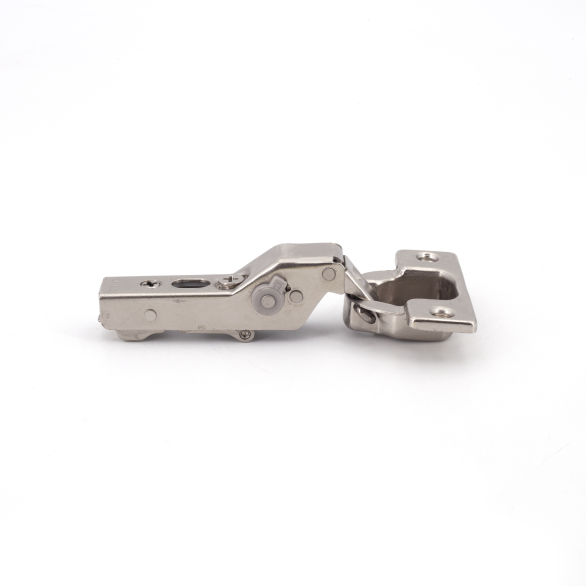

Olympia Concealed Soft-Close Hinge – 105° Opening, 9mm Overlay

The Olympia Concealed Soft-Close Hinge is a premium cabinet hinge designed to deliver smooth, reliable door movement and precise adjustment for modern cabinetry. Featuring a 105° opening angle and 9mm overlay, this high-performance hinge is an ideal solution for kitchen cabinets, wardrobes, bathroom furniture, and custom joinery projects.

Engineered to compete with leading concealed hinge systems, the Olympia hinge incorporates a 5-speed adjustable soft-close damper, allowing installers and manufacturers to fine-tune the closing action for different door sizes and weights. The integrated soft-close mechanism ensures quiet, controlled door movement while reducing wear and extending the lifespan of cabinet doors.

The convenient clip-on design allows for quick installation and removal without tools, while the 3-way adjustment system enables precise alignment even after the door has been installed. Designed for doors up to 20mm thick, the Olympia Concealed Hinge combines durability, flexibility, and ease of installation for professional cabinetry applications.

Suitable for both residential and commercial furniture projects, the Olympia hinge provides a premium soft-close solution that delivers exceptional performance and long-term reliability.

Key Features

• Premium concealed cabinet hinge with soft-close functionality
• 105° opening angle
• 9mm overlay design

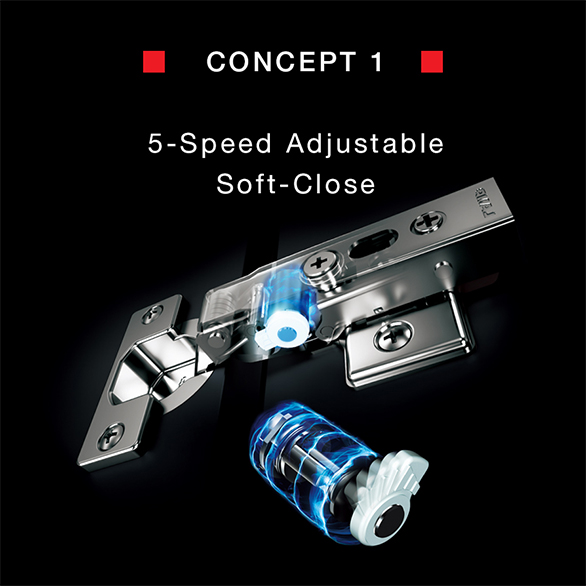

• Integrated 5-speed adjustable damper

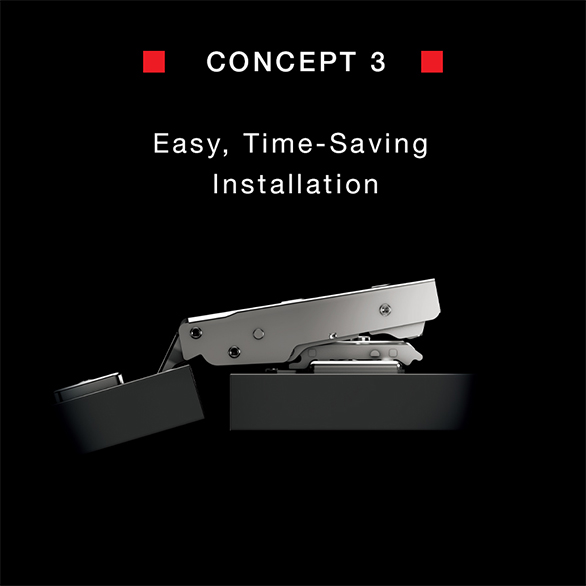

• Clip-on installation system for quick fitting and removal

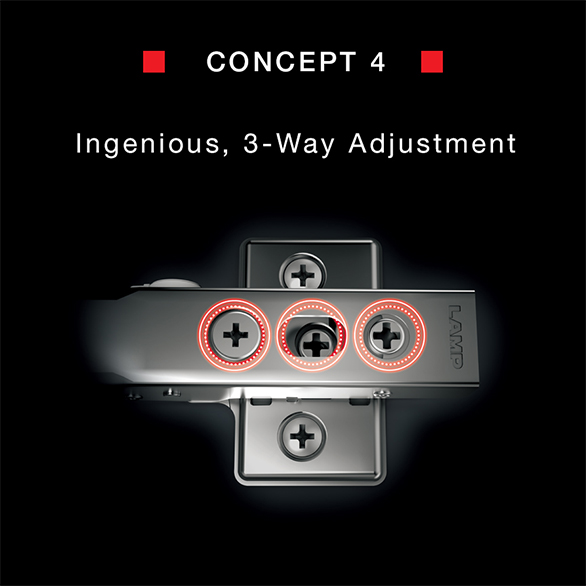

• 3-way adjustment with door installed
• Smooth and quiet soft-close operation
• Suitable for cabinet doors up to 20mm thick
• Designed for kitchens, wardrobes, bathroom cabinets, and custom furniture

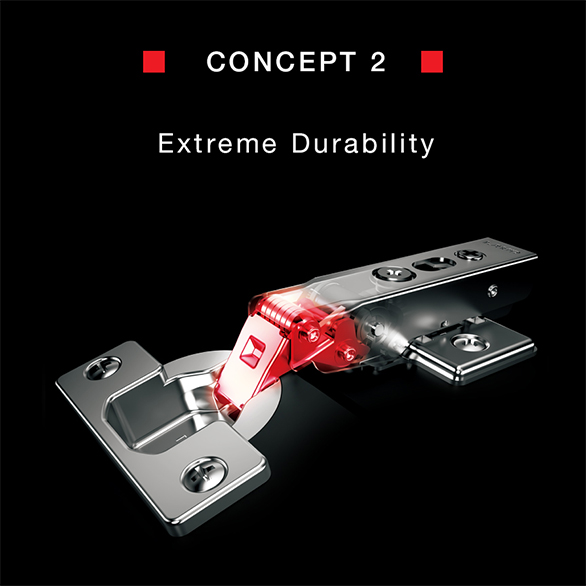

• Durable construction for long-lasting performance

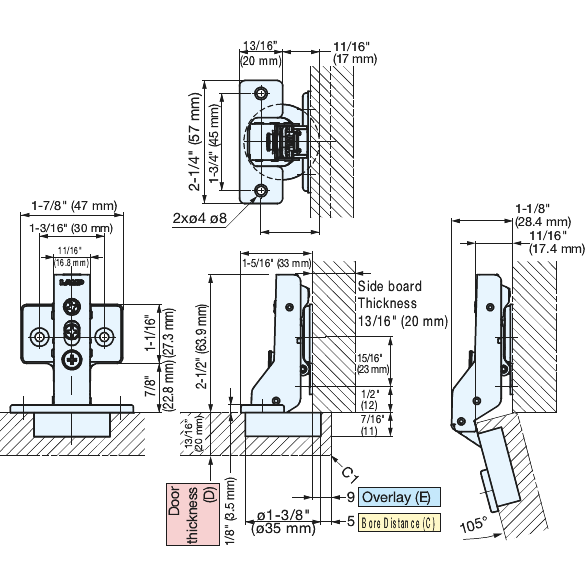

Technical Specifications

• Product: Olympia Concealed Soft-Close Hinge
• Opening Angle: 105°
• Overlay: 9mm
• Maximum Door Thickness: 20mm
• Maximum Door Width: 600mm
• Load Capacity:
  • 6kg per door using 2 hinges
  • 10kg per door using 3 hinges
• Damper: 5-speed adjustable soft-close mechanism
• Installation Type: Clip-on concealed hinge
• Adjustment: 3-way adjustment
• Mounting Plate: Sold separately

Face Frame Cabinet Installation

For face frame cabinet applications, the FFCB-HG-1 Face Frame Cabinet Bracket is required.

• One bracket required per hinge
• FFCB-HG-1 sold separately
• Allows installation of Olympia overlay hinges on face frame cabinets

Applications

The Olympia Concealed Soft-Close Hinge is ideal for cabinet makers, furniture manufacturers, kitchen installers, and joinery professionals seeking a premium concealed hinge solution. Its adjustable soft-close technology, clip-on installation, and precision adjustment make it an excellent choice for high-quality residential and commercial cabinetry.
