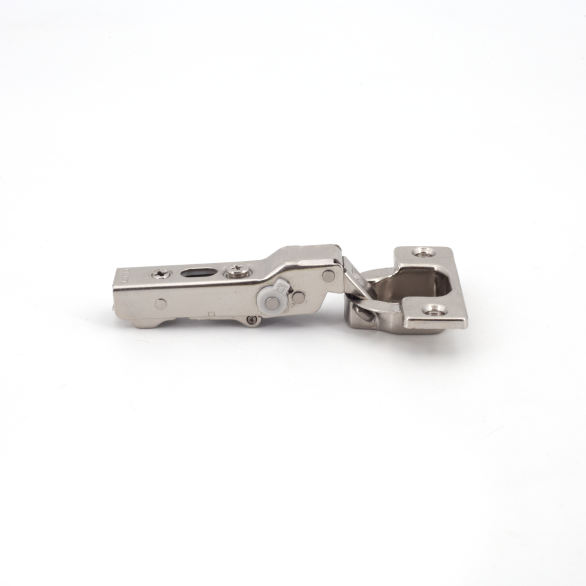

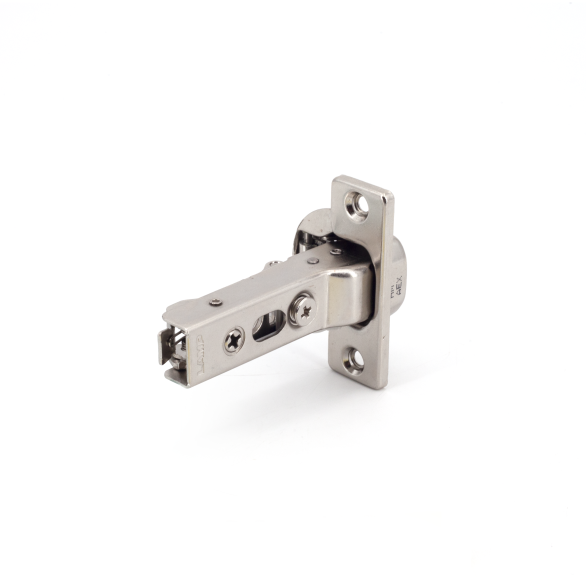

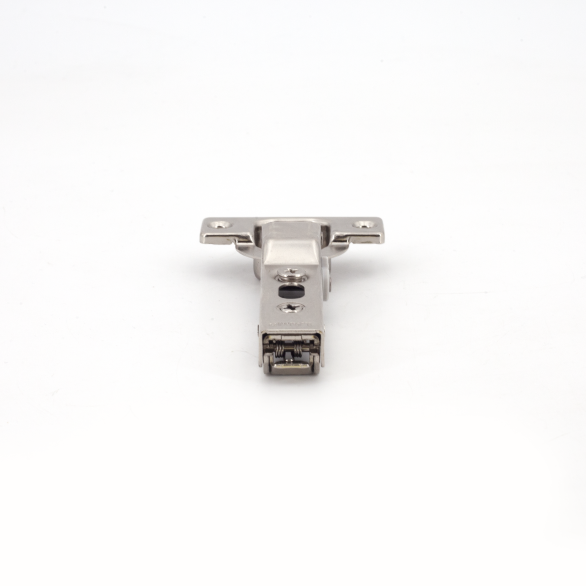

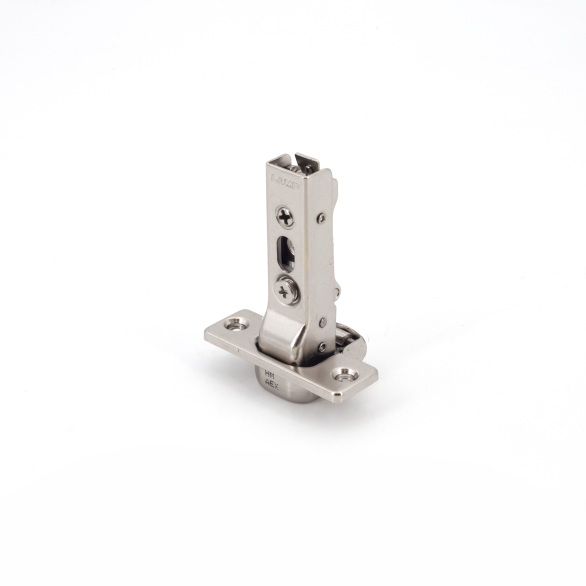

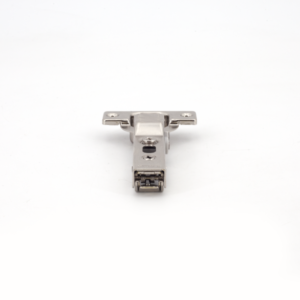

Olympia Concealed Soft-Close Hinge – 105° Opening, 14mm Overlay

The Olympia Concealed Soft-Close Hinge is a premium cabinet hinge engineered for smooth operation, precise adjustment, and long-lasting performance. Featuring a 105° opening angle and 14mm overlay, this high-quality concealed hinge is ideal for modern kitchen cabinets, wardrobes, bathroom furniture, and custom cabinetry applications.

Designed to deliver professional results, the Olympia hinge features an advanced 5-speed adjustable soft-close damper, allowing installers to fine-tune the closing speed according to door size and weight. The integrated soft-close mechanism ensures quiet, controlled door movement while reducing impact and wear on cabinetry.

The convenient clip-on installation system simplifies fitting and removal, while the 3-way adjustment mechanism allows accurate door alignment even after installation. Suitable for cabinet doors up to 20mm thick, the Olympia Concealed Hinge offers exceptional flexibility, durability, and ease of use for both residential and commercial projects.

Whether used in high-end kitchens, wardrobes, or bespoke furniture, the Olympia 14mm Overlay Hinge provides reliable soft-close performance and a clean, concealed appearance.

Key Features

• Premium concealed cabinet hinge with soft-close functionality
• 105° opening angle
• 14mm overlay design

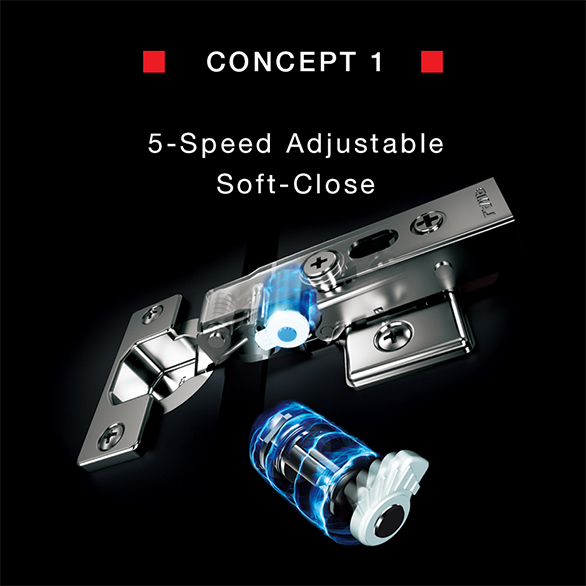

• Integrated 5-speed adjustable damper
• Smooth and quiet soft-close operation
• Clip-on installation system for quick fitting and removal

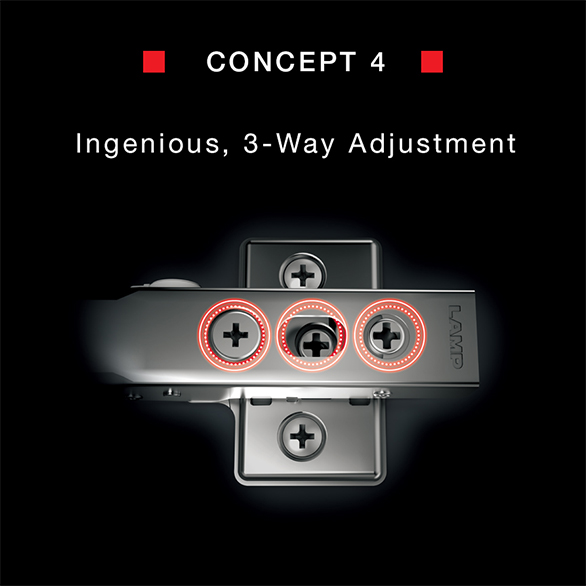

• 3-way adjustment with door installed
• Suitable for cabinet doors up to 20mm thick
• Ideal for kitchens, wardrobes, bathroom cabinets, and custom furniture
• Durable construction for long-term reliability

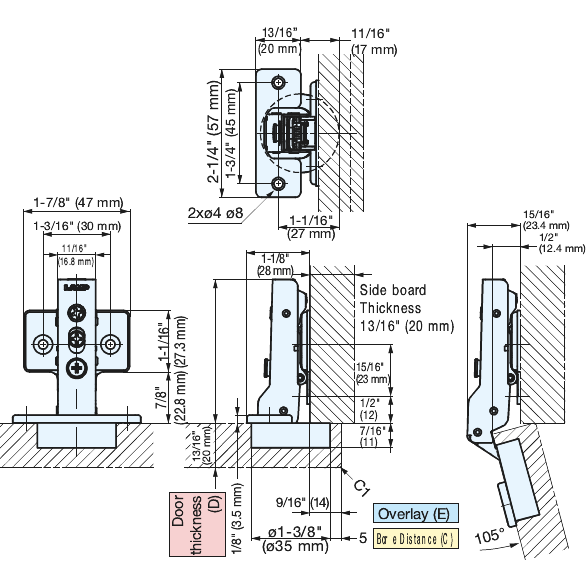

Technical Specifications

• Product: Olympia Concealed Soft-Close Hinge
• Opening Angle: 105°
• Overlay: 14mm
• Maximum Door Thickness: 20mm
• Maximum Door Width: 600mm
• Load Capacity:
  • 6kg per door using 2 hinges
  • 10kg per door using 3 hinges
• Damper: 5-speed adjustable soft-close mechanism
• Installation Type: Clip-on concealed hinge
• Adjustment: 3-way adjustment
• Mounting Plate: Sold separately

Face Frame Cabinet Installation

For face frame cabinet applications, the FFCB-HG-1 Face Frame Cabinet Bracket is required.

• One bracket required per hinge
• FFCB-HG-1 sold separately
• Enables installation of Olympia overlay hinges on face frame cabinets

Applications

The Olympia Concealed Soft-Close Hinge is ideal for cabinet makers, furniture manufacturers, kitchen installers, and joinery professionals seeking a premium concealed hinge solution. Its adjustable soft-close technology, clip-on installation system, and precision adjustment capabilities make it an excellent choice for high-quality cabinetry and furniture projects.

📰 Download Catalogue Page
