LIFT-ASSIST stay EZS-ELAN

EZS-ELAN Lift Assist Flap Stay

The EZS-ELAN Lift Assist Flap Stay provides smooth opening and controlled closing for upward-opening flap doors. Designed to reduce opening effort, the integrated lift-assist mechanism makes flap doors feel lighter while improving everyday usability.

As a result, cabinet doors open more comfortably and close more smoothly. Furthermore, the compact design mounts at the top of the cabinet, helping to maximise internal storage space.

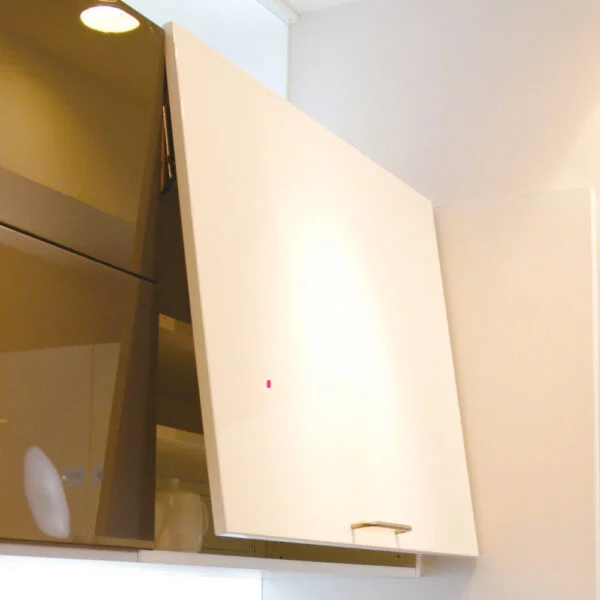

Smooth Opening and Soft Closing

The lift-assist mechanism reduces the force required to open the flap door. In addition, the integrated soft-close function slows the closing movement between 0° and 20°, helping to prevent slamming and reducing wear on furniture components.

Because the stay provides controlled movement throughout operation, it improves both comfort and durability. Consequently, it is ideal for modern cabinet and furniture applications.

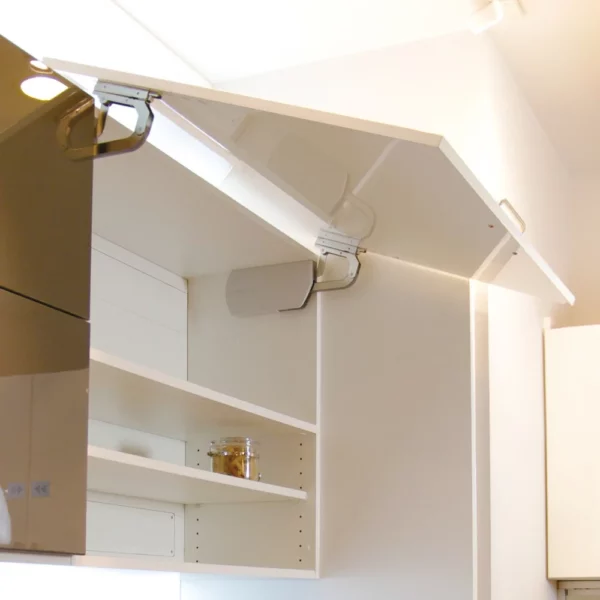

Free-Stop Positioning

The EZS-ELAN features a free-stop function that holds the flap securely at any angle between 30° and 70°. Therefore, users can position the door exactly where required without it dropping unexpectedly.

Additionally, the smooth operation makes access to cabinet contents easier and more convenient.

Space-Saving Design

Unlike many flap stay systems, the EZS-ELAN installs at the top of the cabinet interior. As a result, it significantly reduces dead space and does not interfere with shelf installation.

Moreover, the system does not require hinges or connecting bars, creating a cleaner and more efficient cabinet layout.

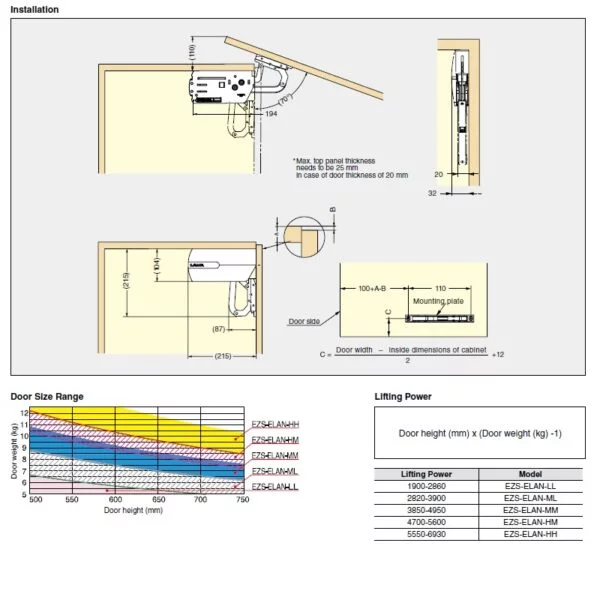

Fast and Easy Installation

Installation is quick and straightforward. Simply position the main body at the top of the cabinet interior and align it flush with the cabinet front.

The stay then attaches to the mounting plate with a simple snap-in action. Furthermore, when the flap door falls within the recommended specifications, no torque adjustment is required after installation.

Award-Winning Performance

The EZS-ELAN successfully passed 30,000 opening and closing cycles during private testing. In addition, the product received the prestigious Good Design Award in 2011, recognising its innovative functionality and user-friendly design.

Therefore, it is an excellent choice for furniture manufacturers, cabinet makers and interior fit-out projects.

Key Features

• Lift assist flap stay
• Soft-close function from 0° to 20°
• Free-stop positioning from 30° to 70°
• Makes flap doors feel lighter
• Suitable for upward-opening flap doors
• No hinges or connecting bars required
• Compact space-saving design
• Snap-on installation
• Easy alignment during fitting
• Tested to 30,000 cycles
• Good Design Award Winner 2011
• Steel and ABS construction
• Nickel and light blue finish

Specifications

• Product: EZS-ELAN
• Application: Upward-opening flap doors
• Free-Stop Range: 30°–70°
• Soft-Close Range: 0°–20°
• Material: Steel / ABS
• Flap Material: Wood
• Finish: Nickel / Light Blue

Included in the Pack

• 2 × Mounting Plates
• 6 × Countersunk Head Tapping Screws (3.5 × 38)
• 4 × Binding Head Tapping Screws (3.5 × 15)

Lifting Power Calculation

Lifting Power = Door Height (mm) × (Door Weight (kg) − 1)

Please ensure the flap door falls within the recommended operating specifications for optimum performance.
