Aileron stay for olympia ARN-2

The ARN-2 Aileron Stay is an innovative concealed hinge and lift-assist stay system designed for smooth and controlled flap door operation. Developed for use with the OLYMPIA concealed hinge, this integrated solution combines hinge and stay functionality into a compact design, reducing hardware requirements while maintaining a clean appearance.

The lift-assist mechanism provides lighter and more comfortable opening, with adjustable force settings to suit different door sizes and weights. A free-stop function allows the door to remain securely positioned at the desired angle, while the integrated soft-close mechanism ensures gentle and controlled closing between 0° and 30°.

Designed for reliability and ease of use, the ARN-2 Aileron Stay also features adjustable closing speed, allowing fine-tuning for optimal door performance in a range of furniture applications.

Key Features

• Integrated concealed hinge and stay design
• Compatible with OLYMPIA concealed hinges
• Lift-assist function for easier opening
• Adjustable lift-assist force
• Free-stop positioning
• Soft-closing action from 0° to 30°
• Adjustable door closing speed
• Smooth and controlled door movement
• Compact, space-saving solution

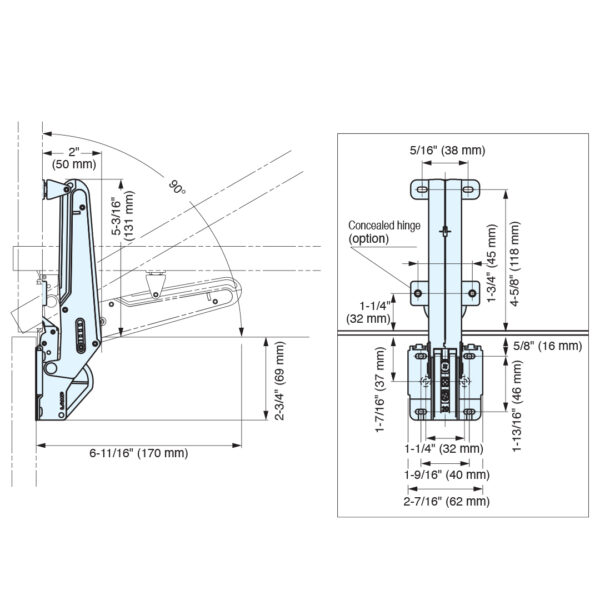

Specifications

• Product: ARN-2 Aileron Stay
• Application: Flap and lift-up cabinet doors
• Door Width: 450–900mm
• Operating Temperature: 0°C to 40°C
• Material: Steel (SPCC) and POM
• Finish: Nickel Plated / Grey

Supplied With

• Aileron Stay
• Mounting Plate for Aileron Stay
• Olympia Concealed Hinge
• Mounting Plate for Olympia Hinge
• Fixing Screws
