MONOFLAT LIN-X800

MONOFLAT LIN-X800 Flush Cabinet Door Hinge

The MONOFLAT LIN-X800 Flush Cabinet Door Hinge is an innovative door movement system designed for large cabinet doors and architectural furniture applications. Its unique mechanism allows doors to move discreetly out of the way while closing perfectly flush with surrounding surfaces, creating a clean and minimalist appearance.

As a result, the LIN-X800 is ideal for premium cabinetry, hidden storage solutions and contemporary interior designs where both aesthetics and functionality are important.

Flush Door Design

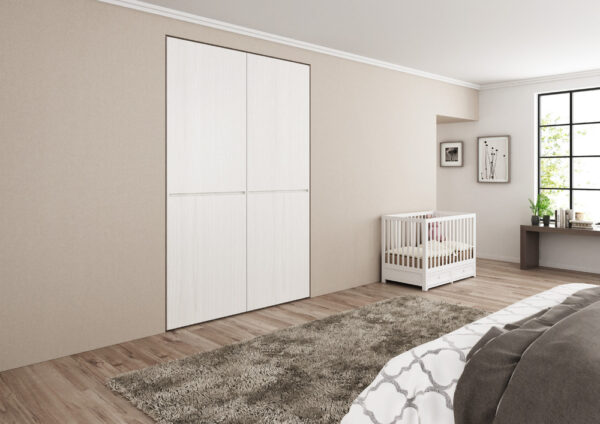

The LIN-X800 allows doors to close flush with surrounding walls and cabinetry, creating a seamless appearance. Furthermore, no grooves, floor tracks or wall rails are required, simplifying installation while maintaining a clean architectural finish.

Consequently, the system is well suited to modern interiors that prioritise minimalist design.

Space-Saving Door Movement

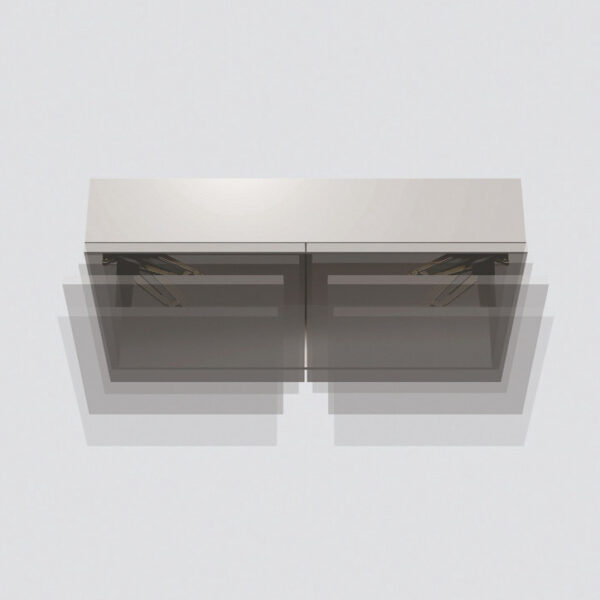

Unlike traditional swing doors, the MONOFLAT LIN-X800 uses an innovative movement system that significantly reduces the door swing radius. Therefore, valuable floor space in front of the cabinet remains usable even when the door is being operated.

In addition, the door remains neatly out of the way in both the open and closed positions.

Built-In Soft Close

The integrated damping mechanism provides a smooth and controlled closing action. As a result, doors close quietly and gently, helping to prevent slamming and reducing wear on furniture components.

Furthermore, the soft-close function improves the overall user experience and adds a premium feel to the installation.

Four-Way Adjustment

The LIN-X800 offers extensive adjustment options after installation, allowing precise alignment of the door.

Adjustment options include:

• Vertical adjustment
• Horizontal adjustment
• Depth adjustment
• Parallel adjustment

Therefore, installers can achieve a perfect fit even on larger doors.

Suitable for a Wide Range of Applications

The system supports both single-door and double-door configurations. Moreover, it can be used in L-shaped corner installations, providing exceptional flexibility for furniture designers and cabinet makers.

Additionally, the LIN-X800 can be used with aluminium-framed doors where the frame thickness exceeds 120mm.

Key Features

• Flush cabinet door hinge system
• Innovative concealed door movement
• Doors close flush with surrounding surfaces
• No floor tracks, rails or wall grooves required
• Reduced swing radius
• Space-saving design
• Built-in soft-close mechanism
• Four-way adjustment after installation
• Suitable for single and double-door cabinets
• Compatible with corner cabinet applications
• Suitable for aluminium frame doors
• Clean architectural appearance

Specifications

LIN-X800

• Door Width: 750–850mm
• Door Height: 1600–2400mm
• Door Thickness: 24–40mm
• Maximum Door Weight: 40kg

LIN-X800H

• Door Width: 750–850mm
• Door Height: 1600–2980mm
• Door Thickness: 24–40mm
• Maximum Door Weight: 40kg

Usage

• 1 system per door
• Overlay application

Applications

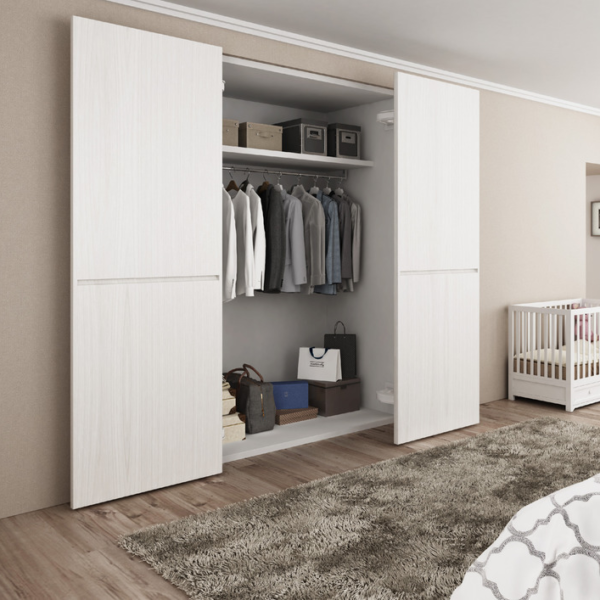

The MONOFLAT LIN-X800 is ideal for:

• Flush cabinet doors
• Hidden storage solutions
• Walk-in wardrobes
• Premium wardrobes
• Architectural joinery
• Living room furniture
• Home office furniture
• Commercial interiors
• L-shaped corner cabinetry
• Aluminium frame cabinet doors

Why Choose the MONOFLAT LIN-X800?

Because the LIN-X800 combines flush door aesthetics, soft-close operation and a compact opening radius, it offers a premium solution for modern furniture and architectural interiors. Furthermore, its wide adjustment range and flexible installation options make it suitable for a broad range of cabinet designs.
