SWING lift-up stay SLU-ELAN

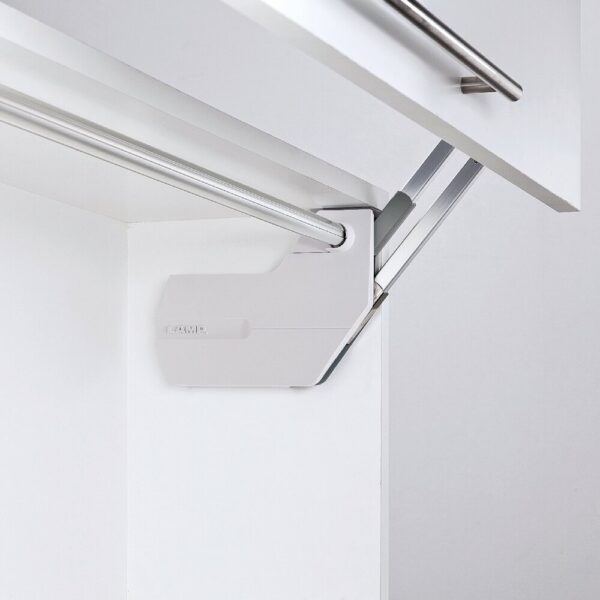

The SLU-ELAN Swing Lift Up Stay is designed for upward-opening flap doors, providing smooth and controlled opening and closing action. Featuring an integrated lift-assist mechanism, the stay reduces the effort required to open larger flap doors while improving overall usability.

The free-stop function allows the flap to remain securely positioned within its operating range, while the soft-closing mechanism slows the door as it approaches the closed position, helping to prevent slamming and reduce wear on cabinetry.

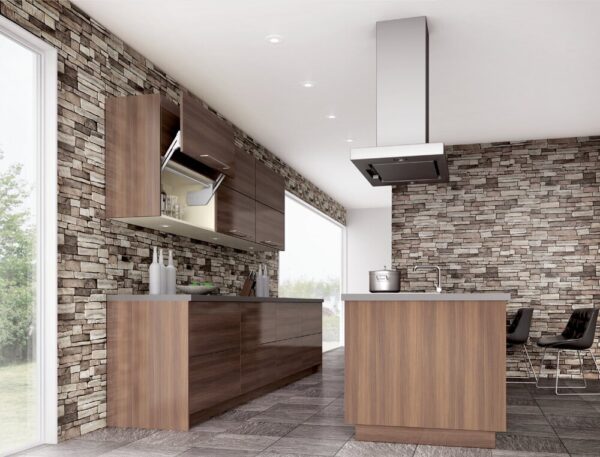

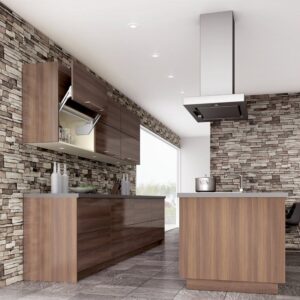

Mounted at the top of the cabinet interior, the SLU-ELAN minimises dead space and stays clear of shelving, making it an ideal solution for kitchen cabinets, storage units and furniture applications. The snap-on design enables fast installation, while easy alignment features simplify adjustment during fitting.

Successfully tested to 30,000 opening and closing cycles, the SLU-ELAN offers dependable long-term performance.

Key Features

• Lift-assist mechanism for easier opening
• Free-stop function for flexible positioning
• Soft-closing action near the closing radius
• Tested to 30,000 opening and closing cycles
• Top-mounted design reduces dead space
• Does not interfere with shelf installation
• Easy alignment and adjustment
• Quick snap-on installation
• Suitable for flap widths up to 1800mm

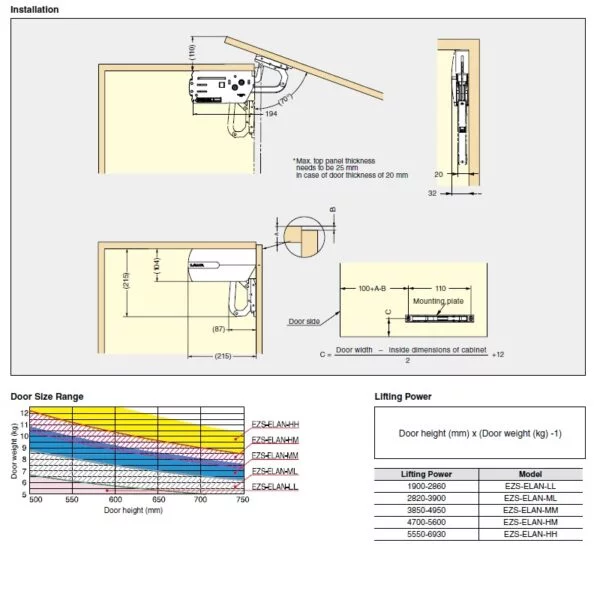

Specifications

• Product: SLU-ELAN Swing Lift Up Stay
• Application: Upward-opening flap doors
• Maximum Flap Width: 1800mm
• Minimum Flap Height: 390mm
• Maximum Flap Height: 500mm
• Material: Aluminium Alloy and ABS
• Finish: Anodized Light Grey

Supplied With

• 2 Mounting Plates for Main Body
• 2 Guide Plates
• 6 x 3.5 × 38mm Countersunk Head Tapping Screws
• 6 x 3.5 × 15mm Binding Head Tapping Screws
