Aileron stay for olympia ARN-3

Aileron ARN-3 Lift Assist Flap Stay

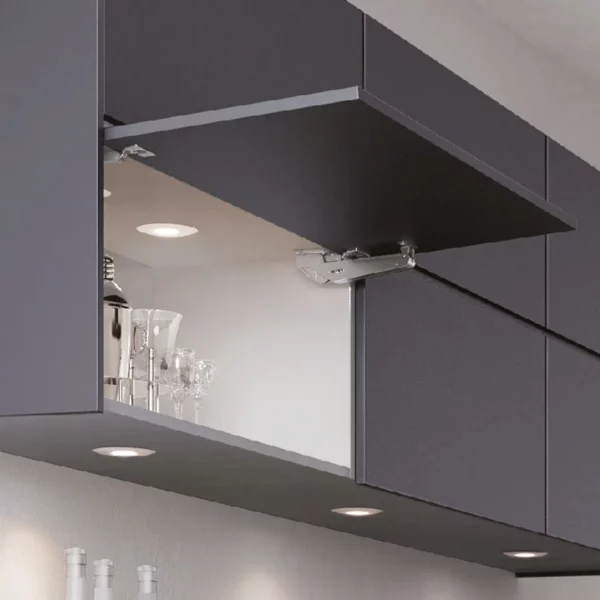

The Aileron ARN-3 Lift Assist Flap Stay provides smooth and controlled movement for upward-opening flap doors. Designed specifically for use with Olympia concealed hinges, the system combines a hinge and stay into one compact solution.

As a result, cabinet doors open more easily and close more smoothly. Furthermore, the integrated design reduces the number of components required while maintaining a clean and professional installation.

Smooth Opening and Soft Closing

The lift-assist mechanism helps reduce the effort required to open flap doors. In addition, the lift force can be adjusted to suit different door sizes and weights.

When closing, the integrated soft-close function controls the final movement between 0° and 30°. Therefore, the door closes gently and quietly while helping to prevent impact damage.

Adjustable and User-Friendly Operation

The Aileron ARN-3 features a free-stop function that allows the flap door to remain securely positioned at the desired angle. Consequently, users can stop the door exactly where required without it dropping or closing unexpectedly.

Additionally, the closing speed can be adjusted to achieve the preferred operating feel.

Designed for Olympia Hinges

The ARN-3 has been developed specifically for use with Olympia concealed hinges. Moreover, the integrated system combines hinge functionality and flap support in a single solution, making installation simple and efficient.

The system is suitable for flap doors with widths between 450mm and 900mm, providing flexibility for a wide range of furniture applications.

Durable Construction

Manufactured from steel (SPCC) and POM, the ARN-3 delivers reliable long-term performance. Furthermore, the nickel-plated and grey finish provides a durable and professional appearance suitable for modern furniture designs.

The stay operates effectively in temperatures ranging from 0°C to 40°C, making it suitable for everyday residential and commercial environments.

Key Features

• Lift assist flap stay
• Designed for Olympia concealed hinges
• Smooth opening action
• Adjustable lift-assist force
• Soft-close function from 0° to 30°
• Free-stop positioning
• Adjustable closing speed
• Integrated hinge and stay design
• Suitable for upward-opening flap doors
• Door widths from 450mm to 900mm
• Steel and POM construction
• Nickel-plated and grey finish

Specifications

• Product: Aileron ARN-3
• Application: Upward-opening flap doors
• Door Width: 450–900mm
• Operating Temperature: 0°C to 40°C
• Material: Steel (SPCC) / POM
• Finish: Nickel Plating / Grey

Included in the Pack

• 1 × Aileron Stay
• 2 × Olympia Hinges with Damper
• 1 × Aileron Mounting Plate
• 1 × Olympia Mounting Plate
• 8 × Fixing Screws
