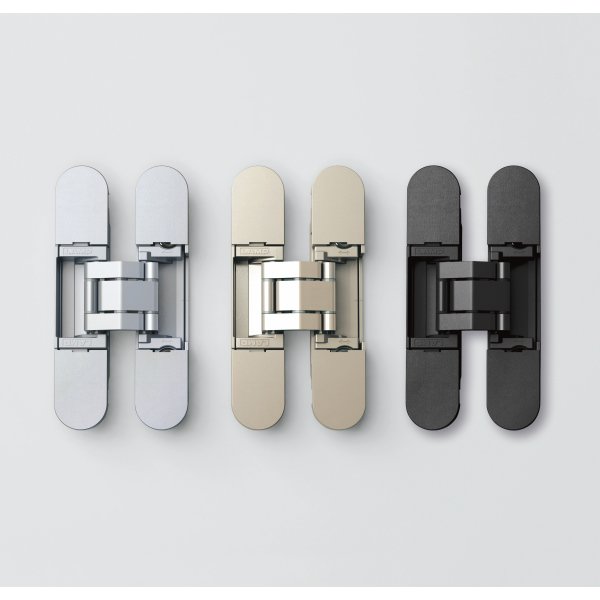

HES3D-90 3-Way Adjustable Concealed Hinge

The HES3D-90 3-Way Adjustable Concealed Hinge is a premium invisible hinge designed for high-end cabinetry, furniture, and architectural interior applications where a clean, seamless appearance is essential. Fully concealed when the door is closed, this hinge delivers a minimalist aesthetic while offering precise post-installation adjustment and exceptional build quality.

Manufactured in Japan from high-quality zinc alloy, the HES3D-90 combines durability, reliability, and precision engineering. Its advanced 3-way adjustment system allows vertical, horizontal, and depth adjustments after installation, enabling perfect door alignment without removing the hinge.

With a maximum opening angle of 180°, the HES3D-90 provides unrestricted access and smooth operation, making it ideal for premium cabinetry, hidden doors, bespoke furniture, and luxury joinery projects. Decorative cover caps conceal all fixing screws, creating a refined and professional finish that enhances the overall appearance of the installation.

Suitable for doors with a minimum thickness of 23mm, the HES3D-90 offers excellent load capacity and dependable long-term performance, making it an ideal solution for designers, cabinet makers, and architects seeking premium concealed hardware.

Key Features

• Premium 3-way adjustable concealed hinge
• Fully concealed design for a seamless appearance
• 180° opening angle for maximum access
• Vertical, horizontal, and depth adjustment after installation
• Hidden screw covers for a clean finish
• Suitable for doors with a minimum thickness of 23mm
• High-quality zinc alloy construction
• Smooth and reliable operation
• Made in Japan
• Ideal for cabinetry, furniture, hidden doors, and architectural joinery

Technical Specifications

• Product: HES3D-90 Concealed Hinge
• Opening Angle: 180°
• Door Thickness: Minimum 23mm
• Maximum Door Width: 600mm
• Maximum Door Height: 1500mm
• Load Capacity:
  • 12kg per door using 2 hinges
  • 16kg per door using 3 hinges
• Adjustment:
  • Vertical Adjustment
  • Horizontal Adjustment
  • Depth Adjustment
• Material: High-Quality Zinc Alloy
• Finish: Concealed screw cover design
• Country of Manufacture: Japan

Applications

The HES3D-90 Concealed Hinge is ideal for cabinet makers, furniture manufacturers, architects, and joinery professionals seeking a premium hidden hinge solution. Its invisible appearance, 180° opening capability, and precise 3D adjustability make it perfect for luxury cabinetry, custom furniture, concealed storage solutions, and modern architectural interiors.

Why Choose the HES3D-90?

Designed for projects where appearance and precision matter, the HES3D-90 provides the clean look of a fully concealed hinge combined with the flexibility of post-installation adjustment. Its Japanese manufacturing quality, durable zinc alloy construction, and wide opening angle make it an excellent choice for premium furniture and joinery applications.
