Olympia Concealed Soft-Close Hinge – 100° Opening, 16mm Overlay

The Olympia Concealed Soft-Close Hinge is a premium cabinet hinge engineered for superior performance, smooth operation, and precise adjustment. Featuring a 100° opening angle and 16mm overlay, this concealed hinge is ideal for modern kitchens, wardrobes, bathroom cabinetry, and bespoke furniture applications where reliability and a clean finish are essential.

Designed for professional cabinet makers and furniture manufacturers, the Olympia hinge incorporates an advanced 5-speed adjustable soft-close damper, allowing the closing action to be fine-tuned for different door sizes and weights. The integrated damping mechanism ensures smooth, quiet closing while minimizing impact and wear on cabinet doors.

The convenient clip-on installation system enables quick fitting and removal, while the 3-way adjustment feature allows precise alignment after installation. Suitable for doors up to 30mm thick, the Olympia 100° Hinge provides excellent flexibility for a wide range of cabinetry designs.

Combining durability, adjustability, and premium soft-close performance, the Olympia Concealed Hinge is a dependable solution for both residential and commercial furniture projects.

Key Features

• Premium concealed cabinet hinge with soft-close functionality
• 100° opening angle
• 16mm overlay design
• Integrated 5-speed adjustable damper
• Smooth and quiet soft-close operation
• Clip-on installation for quick fitting and removal
• 3-way adjustment with door installed
• Suitable for cabinet doors up to 30mm thick
• Ideal for kitchens, wardrobes, bathroom cabinets, and custom furniture
• Durable construction for long-term reliability

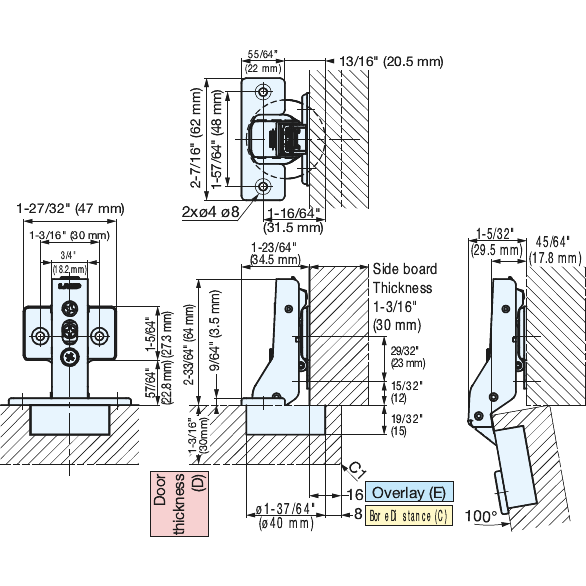

Technical Specifications

• Product: Olympia Concealed Soft-Close Hinge
• Opening Angle: 100°
• Overlay: 16mm
• Maximum Door Thickness: 30mm
• Maximum Door Width: 600mm
• Load Capacity:
  • 9kg per door using 2 hinges
  • 15kg per door using 3 hinges
• Damper: 5-speed adjustable soft-close mechanism
• Installation Type: Clip-on concealed hinge
• Adjustment: 3-way adjustment
• Mounting Plate: Sold separately

Applications

The Olympia Concealed Soft-Close Hinge is ideal for cabinet makers, furniture manufacturers, kitchen installers, and joinery professionals seeking a premium concealed hinge solution. Its adjustable soft-close technology, clip-on installation, and precision alignment capabilities make it an excellent choice for high-quality cabinetry and furniture projects.
