GH-G07SHK STAINLESS STEEL GLASS DOOR GRAVITY HINGE

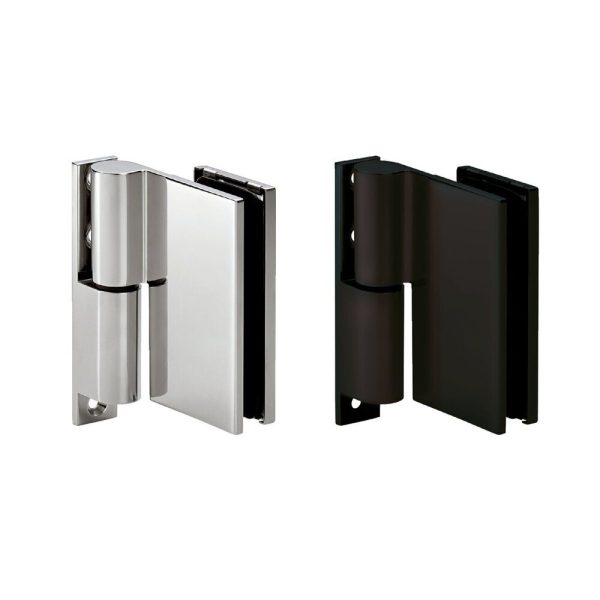

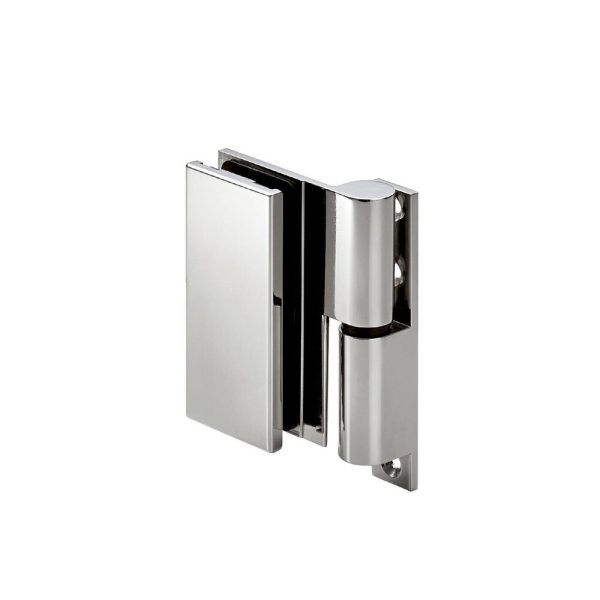

Glass Door Gravity Hinge – GH-G07SHK

The Glass Door Gravity Hinge GH-G07SHK is a stainless steel hinge with self-closing, self-opening and fixed shaft functions. It uses the weight of the door and gravity to provide smooth and reliable movement for glass door applications.

The fixed shaft on the lower half of the hinge allows for easy door removal when required. This makes the GH-G07SHK a practical choice for installations where convenient door removal and maintenance are important.

Self-Closing Glass Door Hinge

The GH-G07SHK automatically closes the door from 70° using the weight of the door and gravity. As the door approaches the closed position, the hinge increases the closing force to help ensure secure closure.

This strong closing action also helps reduce the chance of the door opening unintentionally because of air pressure or other external factors. Therefore, the hinge provides reliable performance where secure door closure matters.

Self-Opening Function

In addition to its self-closing function, the GH-G07SHK automatically opens the door between 70° and 160°. This provides greater flexibility for different glass door applications.

You can also keep the door open within the self-opening range by using a suitable door stopper. As a result, the hinge can provide automatic movement when required while still allowing the door to remain open.

Fixed Shaft for Easy Door Removal

The GH-G07SHK features a fixed shaft in the lower half of the hinge. This design allows the glass door to be removed more easily when maintenance, adjustment or other work is required.

The fixed shaft makes the hinge particularly useful for installations where regular access to the door or surrounding area may be necessary.

Suitable for Shower Booths and Wet Areas

The stainless steel construction makes the GH-G07SHK suitable for areas exposed to water. For example, you can use this glass door gravity hinge for shower booths and other wet-area glass doors.

In addition, the stainless steel finish provides a clean and modern appearance that complements glass door installations. The hinge works well in both residential and commercial environments.

GH-G07SHK Features

• Strong self-closing action
• Full closure from 70°
• Automatic self-opening between 70° and 160°
• Fixed shaft for easy door removal
• Uses door weight and gravity for operation
• Closing force increases near the closed position
• Helps reduce unintended door opening
• Door can remain open using a suitable door stopper
• Suitable for areas exposed to water
• Ideal for shower booths
• Stainless steel construction
• Model: GH-G07SHK

Accessories and Additional Components

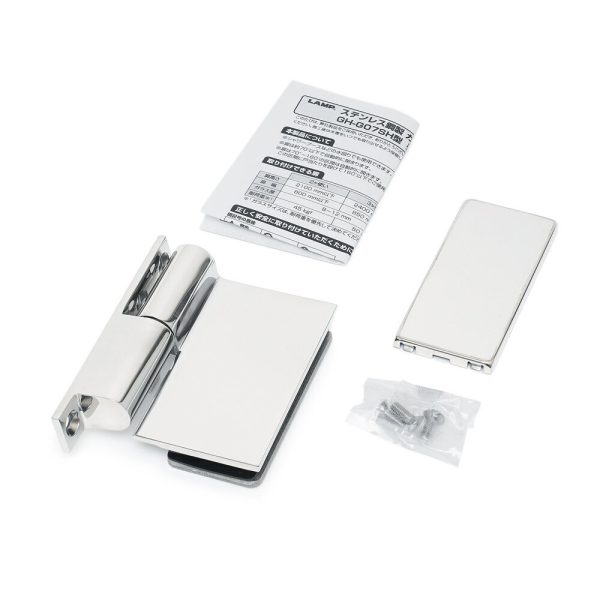

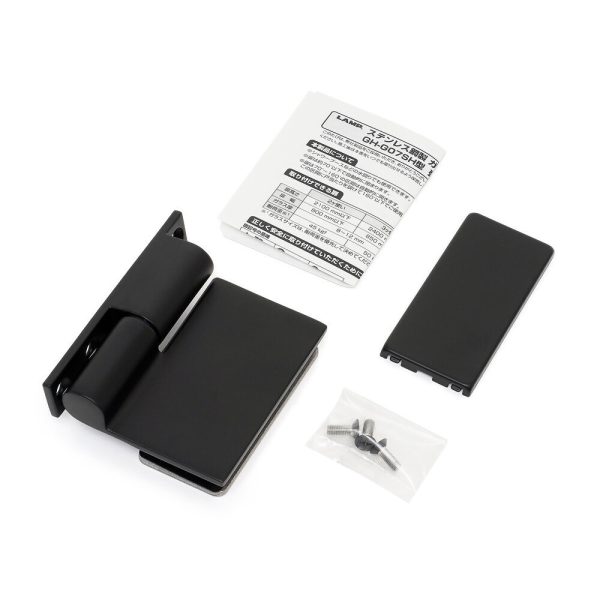

The GH-G07SHK comes with M5 × 14 cross-recessed flat-head screws. These stainless steel screws feature a finish similar to the hinge.

A shaft fixing screw is also included to secure the fixed shaft during installation.

For additional protection, you can purchase a Glass Edge Protector separately. This accessory helps protect the glass edge during installation.

Overall, the Glass Door Gravity Hinge GH-G07SHK combines self-closing, self-opening and easy door removal in one stainless steel hinge. Therefore, it provides a versatile solution for glass doors, shower booths and other water-exposed applications.
