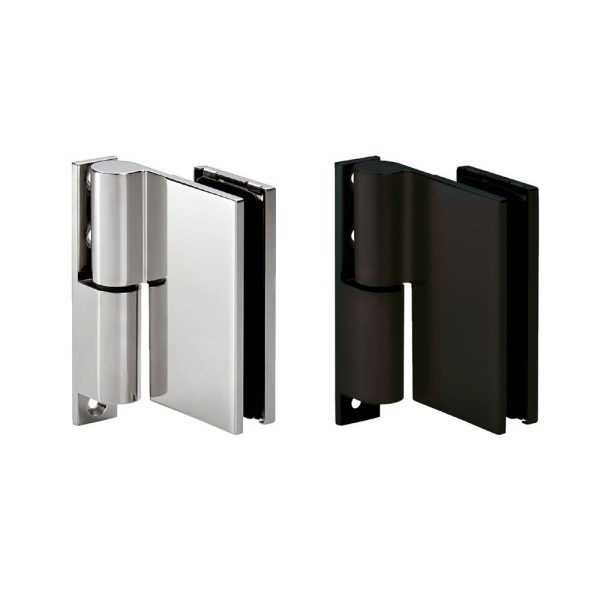

GH-G07SH STAINLESS STEEL GLASS DOOR GRAVITY HINGE

Glass Door Gravity Hinge – GH-G07SH

The Glass Door Gravity Hinge GH-G07SH is a stainless steel hinge that provides both self-closing and self-opening functions. It uses the weight of the glass door and gravity to control the door movement, providing reliable operation for a range of glass door applications.

The hinge automatically closes the door from 70°. As the door approaches the closed position, the closing force increases to help achieve full closure. This also helps reduce the chance of the door opening unintentionally due to air pressure or other external factors.

Self-Closing Glass Door Hinge

The GH-G07SH provides a strong and controlled self-closing function from 70°. The gravity mechanism uses the weight of the door to create the closing action.

As the door moves closer to the closed position, the hinge increases the closing force. This helps ensure that the door closes securely and provides reliable everyday performance.

Furthermore, the design helps reduce unwanted door movement. Therefore, the GH-G07SH is a practical choice for glass doors where secure closure is important.

Self-Opening Glass Door Hinge

The GH-G07SH also provides an automatic self-opening function between 70° and 160°. This gives the door greater flexibility and makes the hinge suitable for applications where both opening and closing assistance are required.

You can hold the door open within this range by using a suitable door stopper. As a result, users can choose between automatic movement and a fixed open position when required.

Suitable for Shower Booths and Wet Areas

The stainless steel construction allows the GH-G07SH to work in areas exposed to water. For example, you can use this glass door gravity hinge for shower booths and other wet-area glass doors.

In addition, the stainless steel finish provides a clean and modern appearance that complements glass door installations. The hinge is suitable for both residential and commercial applications.

GH-G07SH Features

• Strong self-closing action
• Full closure from 70°
• Automatic self-opening between 70° and 160°
• Uses door weight and gravity for operation
• Closing force increases near the closed position
• Helps reduce unintended door opening
• Door can remain open using a suitable door stopper
• Suitable for areas exposed to water
• Ideal for shower booths
• Stainless steel construction
• Model: GH-G07SH

Accessories and Additional Components

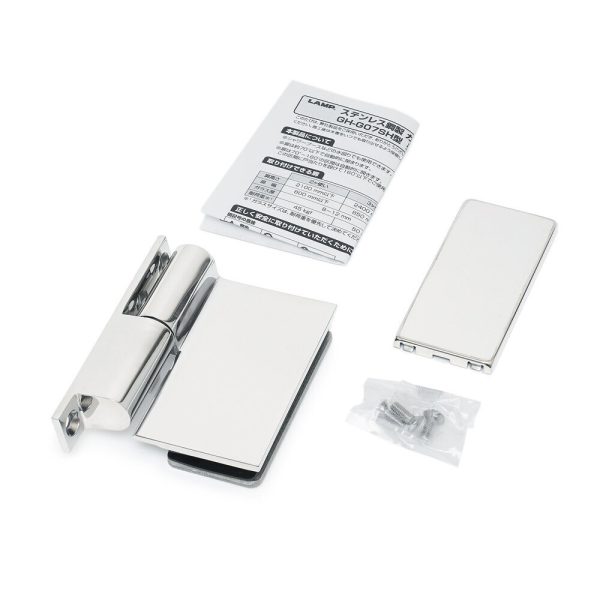

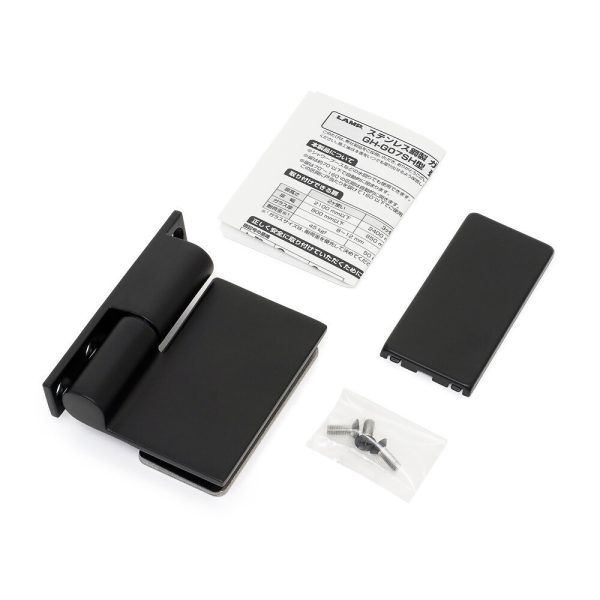

The GH-G07SH comes with M5 × 14 cross-recessed flat-head screws. These stainless steel screws have a finish similar to the hinge.

A Glass Edge Protector is available separately for additional protection during installation. This accessory can help protect the edge of the glass when fitting the hinge.

Overall, the Glass Door Gravity Hinge GH-G07SH combines self-closing and self-opening functions with durable stainless steel construction. Therefore, it provides a versatile solution for glass doors, shower booths and other water-exposed applications.
