MONOFLAT FAD-5

MONOFLAT FAD-5 Lateral Swing Door System

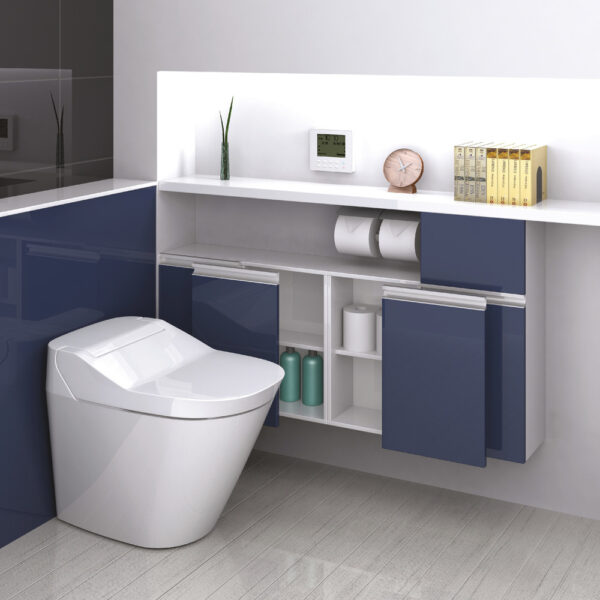

MONOFLAT FAD-5 is a compact lateral swing door system designed for small cabinet doors in kitchens, bathrooms, laundry rooms and other furniture applications. The MONOFLAT FAD-5 provides smooth movement, soft-close functionality and a reduced opening radius, making it an ideal solution where space is limited.

Unlike conventional cabinet hinges, the MONOFLAT FAD-5 moves the door away from the cabinet opening. As a result, the door does not get in the way when fully opened, allowing easier access to cabinet contents and improving everyday usability.

Why Choose MONOFLAT FAD-5?

The MONOFLAT FAD-5 is specifically designed for compact cabinets where traditional swing doors can be restrictive. Because the mechanism requires a smaller opening radius, it helps maximise available space while maintaining a clean and modern appearance.

Furthermore, the lateral swing movement creates a premium user experience and improves access to storage areas.

MONOFLAT FAD-5 Soft-Close Function

The built-in soft-close mechanism ensures that cabinet doors close smoothly and quietly. Consequently, the system helps prevent slamming and reduces wear on furniture components over time.

In addition, the controlled closing action improves comfort and enhances the overall quality of the cabinet.

Easy Installation and Adjustment

MONOFLAT FAD-5 features a practical overlay installation and allows easy post-installation adjustment. Installers can fine-tune the door position to achieve perfect alignment.

Adjustment options include:

• Vertical adjustment: ±3 mm
• Horizontal adjustment: ±2.5 mm
• Parallel adjustment: 5°

Therefore, achieving a professional finish is simple and efficient.

Applications for MONOFLAT FAD-5

The MONOFLAT FAD-5 lateral swing door system is suitable for:

• Kitchen cabinets
• Bathroom cabinets
• Laundry room cabinets
• Utility room storage
• Home office furniture
• Small storage cupboards
• Residential cabinetry
• Commercial furniture projects

Additionally, the system can be used with both single-door and double-door cabinet configurations.

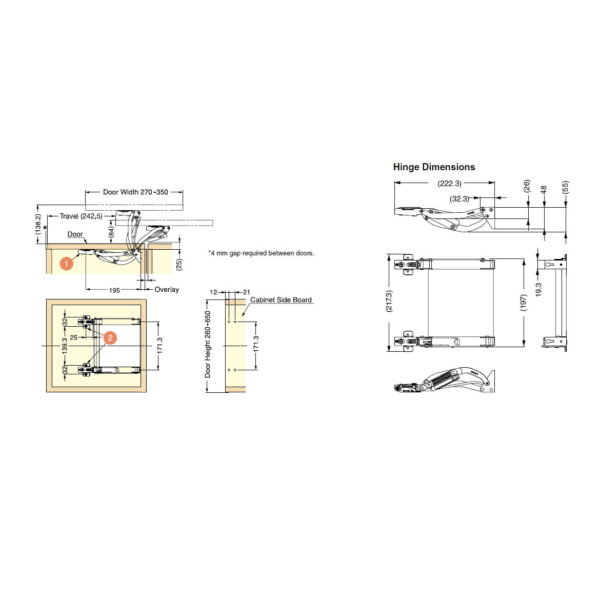

MONOFLAT FAD-5 Specifications

• Maximum Door Weight: 5 kg per door
• Door Width: 270–350 mm
• Door Height: 260–650 mm
• Door Thickness: 15–20 mm
• Installation Type: Overlay

Key Features of MONOFLAT FAD-5

• Compact lateral swing door system
• Reduced opening radius
• Soft-close operation
• Smooth and quiet movement
• Door remains clear of the cabinet opening
• Suitable for single and double doors
• Easy post-installation adjustment
• Ideal for kitchens, bathrooms and laundry rooms
• Modern concealed hardware solution

For larger cabinet applications, explore the MONOFLAT LIN-X450, LIN-X600 and LIN-X800 systems. You can also browse our full range of cabinet hinges and furniture hardware solutions.
