Hawa Junior 80 Z (Pocket) Sliding Interior Pocket Door System

Hawa Junior 80 Z Sliding Interior Pocket Door System
Junior 80 B (Pocket) Sliding Interior Pocket Door System

Hawa Junior 80 Z (Pocket) Sliding Interior Pocket Door System

£22.45–£160.24 ex. VAT
£26.94–£192.29 incl. VAT

In stock

£22.45–£160.24 ex. VAT
£26.94–£192.29 incl. VAT

NOTES

View entire Junior range here

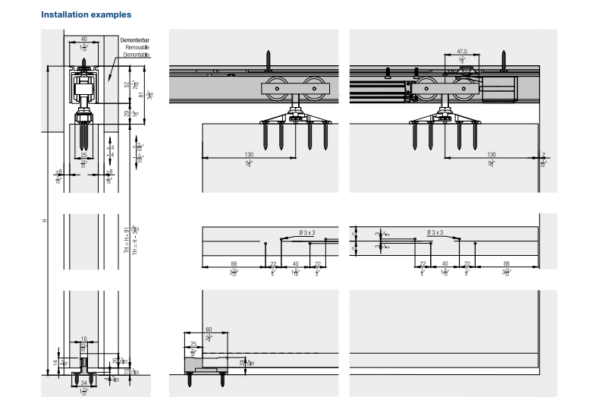

Installation instructions for Junior 80 Z Pocket

Catalogue Page

SKU: N/A

Description

Fitting for top-running wooden doors up to 80 kg (176 lbs.), with surface mounted running track. Optionally with soft and self closing mechanism. Ceiling mounting. Wall pocket solution.

Product-Highlights

Flexibility
The running track can be installed and removed at any time

Aesthetics
Thanks to integrated spring stop with Push-to-open function, there are no visible hardware components, door milling grooves or spring handles at the edge of the door
Technical guidelines



Max. 80 kg (176 lbs.)           Max. 4000 mm (13′ 1 15/32”)            Max. 1500 mm (4′ 11 1/16”)            35–80 mm (1 3/8” to 3 5/32”)



Design / Integration

Ceiling mounting                               Top-running

Additional information

PART

Hawa Junior 80 Z, with 1 track stopper, for 1 door, Stopper Hawa Junior 80/100, with adjustable retention spring, SoftStop Hawa Junior 80/100, with adjustable retention spring, Spring loaded stopper Hawa Junior 80/100, Guide track, for groove mounting, plastic, 1,300mm (4' 3 3/16''), Running track, aluminum, anodized, pre-drilled (2,000mm), Running track, aluminum, anodized, pre-drilled (2,500mm), Running track, aluminum, anodized, pre-drilled (3,000mm), Set for mountable and demountable running track (2,000mm)
