Junior 100 B Sliding Interior Pocket Door System

Hawa Junior 80 Z Symmetric
Junior 100 B (Pocket) Sliding Interior Pocket Door System

Junior 100 B Sliding Interior Pocket Door System

£22.45–£591.45 ex. VAT
£26.94–£709.74 incl. VAT

In stock

£22.45–£591.45 ex. VAT
£26.94–£709.74 incl. VAT

View entire Junior range here

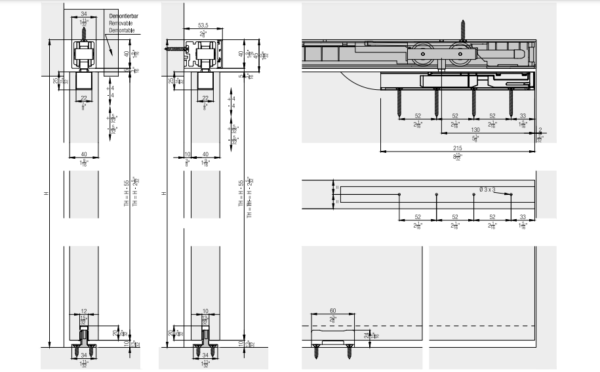

Installation instructions for Junior 100 B

Catalogue Page

SKU: N/A

Description

Fitting for top-running wooden doors up to 100 kg (220 lbs.), with surface mounted running track or running track flush with the ceiling. Optionally with soft and self closing mechanism. Wall or ceiling mounting.

Product-Highlights

Comfort

Accessible opening and soft and self closing at both sides from door widths of 800 mm (2′ 7 1/2″)

Flexibility
Running tracks for wall and ceiling mounting with integrated clip-on system

Security

Performance guarantee: 15 years for private use and 7 years for commercial use on incomparably low opening forces of max. 22 N

Technical guidelines



Max. 80 kg (176 lbs.)           Max. 4000 mm (13′ 1 15/32”)            Max. 3000 mm (9′ 10 1/8”)            35–80 mm (1 3/8” to 3 5/32”)



Design / Integration

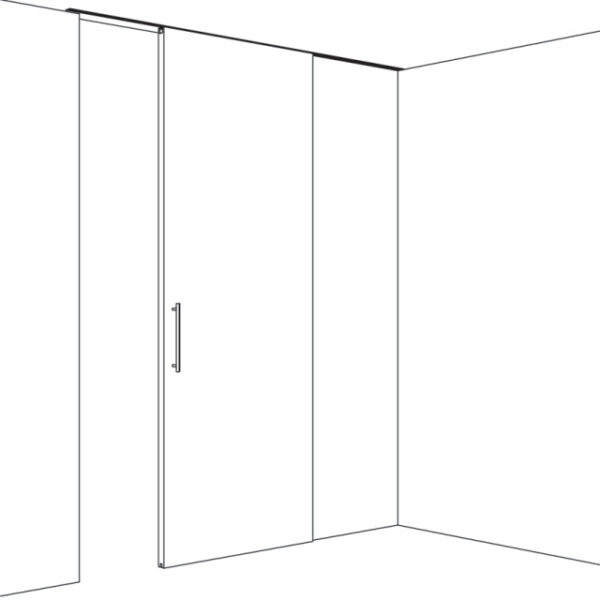

Ceiling mounting                               Top-running                   Ceiling mounting recessed                     Wall mounting

Additional information

PART

Hawa Junior 100 B, with 2 SoftStop, for 1 door, Hawa Junior 100 B, with 1 soft close SoftMove 100 and 1 SoftStop, for 1 door, Hawa Junior 100 B, with 2 soft close SoftMove 100, for 1 door, Soft close SoftMove 100, with running gear, stopper and cover, premounted, Stopper Hawa Junior 80/100, with adjustable retention spring, SoftStop Hawa Junior 80/100, with adjustable retention spring, Guide track, for groove mounting, plastic, 1,300mm (4' 3 3/16''), Running track, aluminum, anodized, pre-drilled (2,000mm), Running track, aluminum, anodized, pre-drilled (2,500mm), Running track, aluminum, anodized, pre-drilled (3,000mm)
