Junior 100 B (Pocket) Sliding Interior Pocket Door System
£22.45–£590.25 ex. VAT
£26.94–£708.30 incl. VAT
- Description
- Additional information
Description

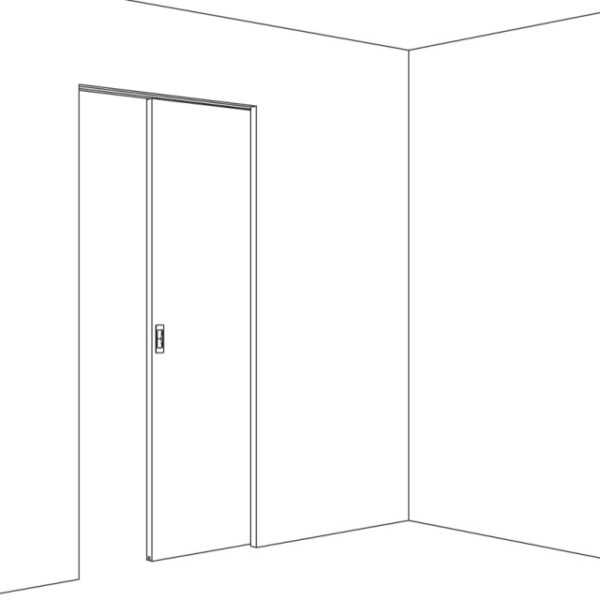

Fitting for top-running wooden doors up to 100 kg (220 lbs.), with surface mounted running track or running track flush with the ceiling. Optionally with soft and self closing mechanism. Ceiling mounting. Wall pocket solution.
Product-Highlights

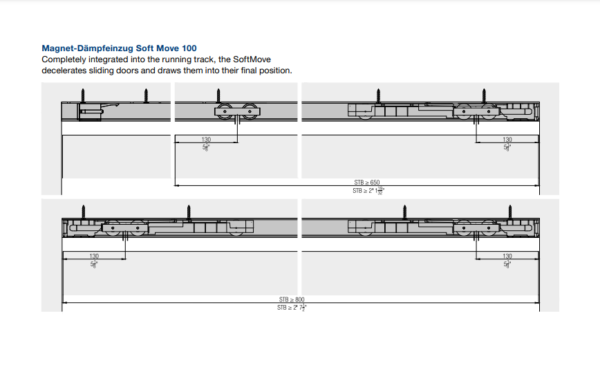

Accessible opening and soft and self closing at both sides from door widths of 800 mm (2′ 7 1/2″)
Performance guarantee: 15 years for private use and 7 years for commercial use on incomparably low opening forces of max. 22 N

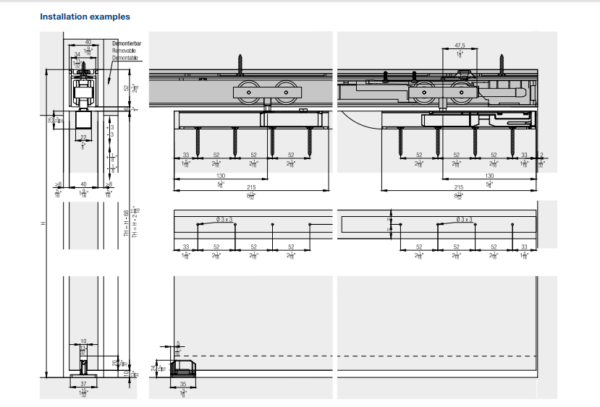

Technical guidelines
Max. 80 kg (176 lbs.)
Max. 4000 mm (13′ 1 15/32”)
Max. 1500 mm (4′ 11 1/16”)
35–80 mm (1 3/8” to 3 5/32”)Design / Integration
Additional information
| PART | Hawa Junior 100 B Pocket, with 2 SoftStop, for 1 door, Hawa Junior 100 B Pocket, with 1 SoftStop and 1 spring loaded stopper, for 1 door, Hawa Junior 100 B Pocket, with 1 soft close SoftMove 100 and 1 SoftStop, for 1 door, Hawa Junior 100 B Pocket, with 1 soft close SoftMove 100 and 1 spring loaded stopper, for 1 door, Hawa Junior 100 B Pocket, with 2 soft close SoftMove 100, for 1 door, Soft close SoftMove 100, with running gear, stopper and cover, premounted, Spring loaded stopper Hawa Junior 80/100, SoftStop Hawa Junior 80/100, with adjustable retention spring, Guide track, for groove mounting, plastic, 1,300mm (4' 3 3/16''), Running track, aluminum, anodized, pre-drilled (2,000mm), Running track, aluminum, anodized, pre-drilled (2,500mm), Running track, aluminum, anodized, pre-drilled (3,000mm), Set for mountable and demountable running track (2,000mm) |
|---|
