Junior 80 B (Pocket) Sliding Interior Pocket Door System

Hawa Junior 80 Z (Pocket) Sliding Interior Pocket Door System
Junior 80 B Sliding Pocket Doors System

Junior 80 B (Pocket) Sliding Interior Pocket Door System

£23.40–£333.00 ex. VAT
£28.08–£399.60 incl. VAT

In stock

£23.40–£333.00 ex. VAT
£28.08–£399.60 incl. VAT

View entire Junior range here

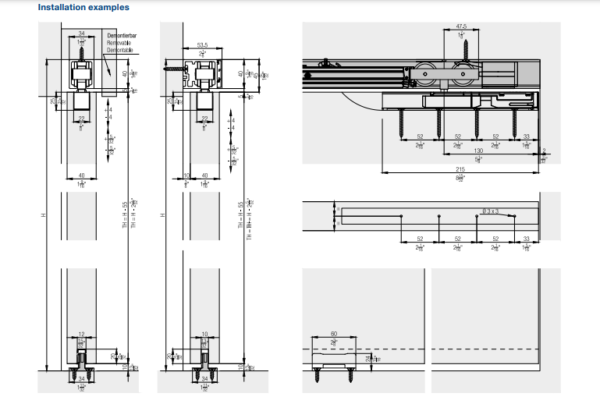

Installation instructions for Junior 80 B Pocket

Catalogue Page

SKU: N/A

Description

Fitting for top-running wooden doors up to 80 kg (176 lbs.), with surface mounted running track or running track flush with the ceiling. Optionally with soft and self closing mechanism. Wall or ceiling mounting. Minimal installation height.

Product-Highlights

Flexibility

Running tracks for wall and ceiling mounting with integrated clip-on system for clip-on panels

Productivity

Tool-less door mounting

Technical guidelines



Max. 80 kg (176 lbs.)           Max. 4000 mm (13′ 1 15/32”)            Max. 3000 mm (9′ 10 1/8”)            35–80 mm (1 3/8” to 3 5/32”)



Design / Integration

Ceiling mounting                               Top-running                   Ceiling mounting recessed                     Wall mounting

Additional information

PART

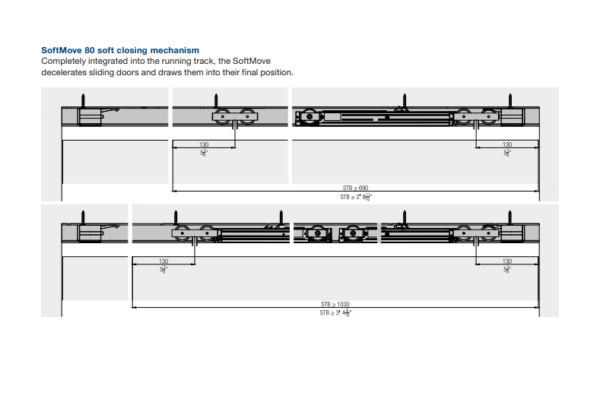

Hawa Junior 80 B Pocket, with supsension bolt M10, for 1 door, Hawa Junior 80 B Pocket, with 20 mm (25/32'') longer supsension bolt M10, for 1 door, Soft closing mechanism SoftMove 80, Stopper Hawa Junior 80/100, with adjustable retention spring, SoftStop Hawa Junior 80/100, with adjustable retention spring, Spring loaded stopper Hawa Junior 80/100, Running track, aluminum, anodized, pre-drilled (2,000mm), Running track, aluminum, anodized, pre-drilled (2,500mm), Running track, aluminum, anodized, pre-drilled (3,000mm), Set for mountable and demountable running track (2,000mm)
