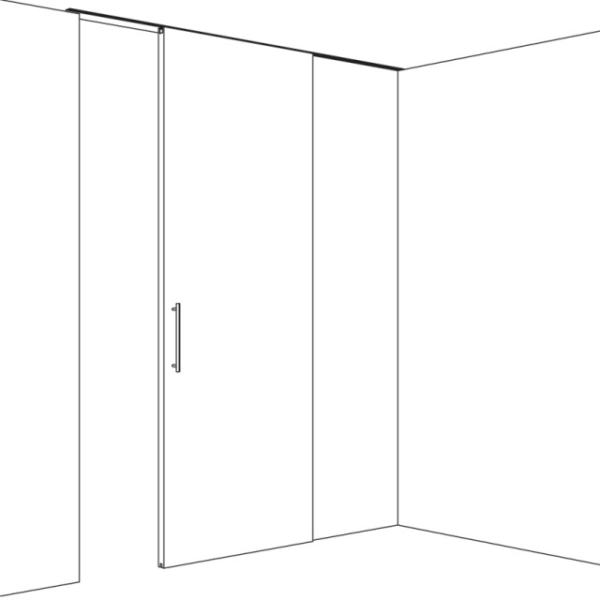

Junior 80 B Sliding Pocket Doors System - Image 1
Junior 80 B Sliding Pocket Doors System - Image 2
Junior 80 B Sliding Pocket Doors System - Image 3

Junior 80 B Sliding Pocket Doors System

Junior 80 B (Pocket) Sliding Interior Pocket Door System
Hawa Junior 80 Z Symmetric

Junior 80 B Sliding Pocket Doors System

£22.45–£353.83 ex. VAT
£26.94–£424.60 incl. VAT

In stock

£22.45–£353.83 ex. VAT
£26.94–£424.60 incl. VAT

View entire Junior range here

Installation instructions for Junior 80 B

Catalogue Page

SKU: N/A

Description

Fitting for top-running wooden doors up to 80 kg (176 lbs.), with surface mounted running track or running track flush with the ceiling. Optionally with soft and self closing mechanism. Ceiling mounting. Minimal installation height. Wall pocket solution.

Product-Highlights

Security

Well-tried product tested for 100,000 cycles, which corresponds to a service life of about 25 years

Productivity

Easy height adjustment via both suspensions and convenient depth adjustment of the installed door in the wall pocket

Technical guidelines

                      Max. 80 kg (176 lbs.)

                      Max. 4000 mm (13′ 1 15/32”)

                    Max. 3000 mm (9′ 10 1/8”)

                    35–80 mm (1 3/8” to 3 5/32”)



Design / Integration

Ceiling mounting                               Top-running

Additional information

PART

Hawa Junior 80 B, for 1 door, Hawa Junior 80 B, with a 20 mm longer suspension bolt M10, for 1 door, Soft closing mechanism SoftMove 80, Guide track, for groove mounting, plastic, 1,300 (4' 3 3/16''), Running track, aluminum, anodized, pre-drilled (2,000mm), Running track, aluminum, anodized, pre-drilled (2,500mm), Running track, aluminum, anodized, pre-drilled (3,000mm)
